| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage Rating |

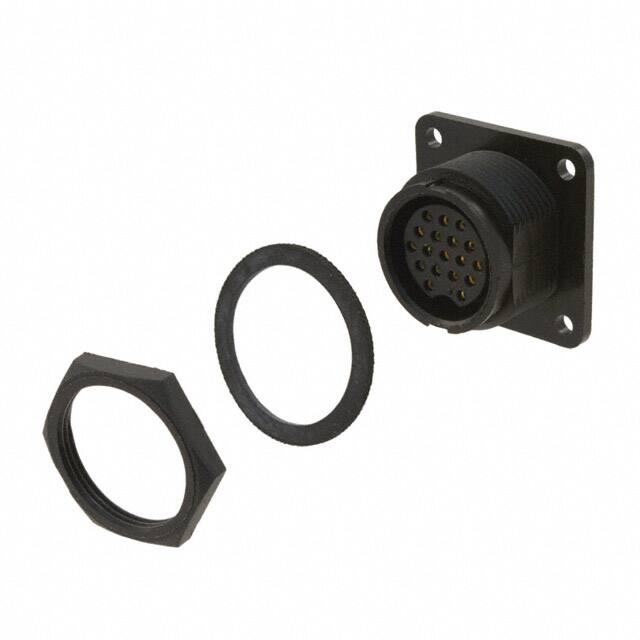

The Conxall/Switchcraft 14282-18SG-300 is a circular connector receptacle designed for reliable signal and power connections in demanding applications. It features 18 positions with female sockets arranged in a keyed orientation to ensure proper mating.
This connector uses a bayonet lock fastening system for secure coupling and is rated for a voltage of 600V. The housing is constructed from black polyamide (PA) nylon with a plastic primary material, providing durability and lightweight performance. The contact finish is gold for reliable conductivity.
Mounting is accomplished via panel mount with a bulkhead front side nut and flange feature. Termination is via solder cup, offering a robust connection for wires. The connector is unshielded and designed to be weathertight, suitable for environments where moisture resistance is required. Operating temperature range is -40°C to 115°C.
The connector has 18 positions.
The voltage rating is 600V.
The mounting type is panel mount with a bulkhead front side nut and flange.
Termination is via solder cup.
The connector uses a bayonet lock.
No, the connector is unshielded.
The operating temperature range is -40°C to 115°C.
