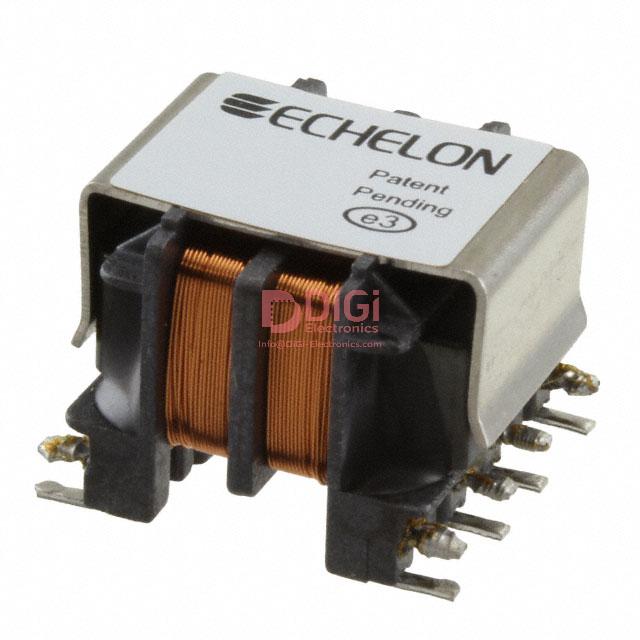

14255R-100 The Echelon Corporation 14255R-100 is an FT-X3 Communications Transformer. It features a surface mount design with dimensions of 17.00mm x 17.00mm.
Mfr Part #:

14255R-100

Available from 2 distributors
Mfr Name: Echelon Corporation
Echelon Corporation
The Echelon Corporation 14255R-100 is an FT-X3 Communications Transformer. It features a surface mount design with dimensions of 17.00mm x 17.00mm.
✓ Total Stock: 15,415 pcs
$ Price Range: $3.00

14255R-100 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 25+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
5,415 pcs
On Request
5415 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

14255R-100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
For Use With
Height
Length
Mounting Type
Width
View Similar Products (0)

14255R-100 Description

Short technical summary and product information.

The Echelon Corporation 14255R-100 is a specialty transformer designed for use with FT 3120, 3150, and 5000 Smart Transceivers. This component features a surface mountable design, making it suitable for modern PCB assembly processes.



Key mechanical specifications include dimensions of 17.00mm in length and 17.00mm in width, with a maximum height of 12.50mm. The transformer is compatible with FT 3120, 3150, and 5000 Smart Transceivers, indicating its role in LonWorks networks.



Environmental compliance data indicates RoHS 3 compliance, an MSL of 1 (Unlimited), and REACH Unaffected status. The packaging is available in Cut Tape (CT) and Digi-Reel® formats.

14255R-100 Quick Information

Product Type: Specialty Transformer
Canonical Name: FT-X3 Communications Transformer
Subcategory: Specialty Transformer

14255R-100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

14255R-100 Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

14255R-100 Features

  • Surface mountable specialty transformer.
  • Dimensions: 17.00mm x 17.00mm x 12.50mm.
  • Compatible with FT 3120, 3150, 5000.
  • RoHS 3 Compliant.
  • MSL 1 (Unlimited).

14255R-100 Applications

  • Suitable for smart network communication applications.
  • Used in LonWorks 2.0 platform devices.
  • Ideal for surface mount communication transformers.
  • Supports various network topologies including star and bus.
  • Compatible with FT 5000 Smart Transceiver systems.

14255R-100 FAQs

6 frequently asked questions generated from this part’s specifications.
What are the dimensions of the FT-X3 Communications Transformer?

The FT-X3 Communications Transformer has dimensions of 17.00mm in length and 17.00mm in width, with a maximum height of 12.50mm.

What smart transceivers is the FT-X3 Communications Transformer compatible with?

The FT-X3 Communications Transformer is compatible with FT 3120, 3150, and 5000 Smart Transceivers.

What is the mounting type for this transformer?

This transformer features a surface mount type.

What is the RoHS status of the 14255R-100?

The 14255R-100 is RoHS 3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

Is the REACH status affected for this component?

The REACH status is unaffected.
