| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Pollution Degree | |
| Primary Material | |
| Rated Current at 40°C | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Standard Package Quantity | |
| Surge Voltage Category | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Volume Resistance |

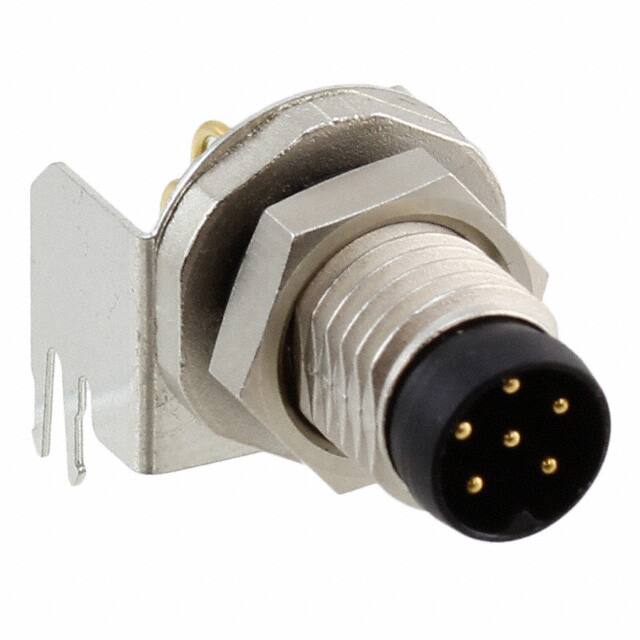

The Phoenix Contact 1424244 is a flush-type circular connector plug designed for sensor/actuator applications. It features a 6-position male pin configuration in an M8 shell size with a right-angle solder termination. The connector is panel mounted via a bulkhead front side nut, making it suitable for rear mounting with an M8 x 1 fastening thread.
Key electrical specifications include a rated current of 1.5 A at 40°C, a voltage rating of 30 V AC/DC, and a contact resistance of ≤3 mΩ. The insulation resistance is at least 100 MΩ. The connector meets IP67 ingress protection, ensuring dust-tight and waterproof operation. The shell is made of nickel-plated zinc die-cast, and the contacts are gold-plated copper alloy for reliable signal integrity.
This connector is designed for industrial environments with a pollution degree of 3. It complies with the IEC 61076-2-104 standard for M8 connectors. The product is RoHS compliant and has a moisture sensitivity level of MSL 1. The single-unit soldering termination offers a robust connection for PCB mounting.
6 positions.
The datasheet specifies 1.5 A at 40°C; the database indicates 2A.
30 V AC/DC.
Panel mount, through hole, right angle with bulkhead front side nut.
IP67 - dust tight and waterproof.
Gold.
Zinc die-cast with nickel plating.
