| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (Operation) | |
| Color | |
| Connection Method | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Package / Case | |
| Pollution Degree | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Standards | |
| Surge Voltage Category | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Volume Resistance |

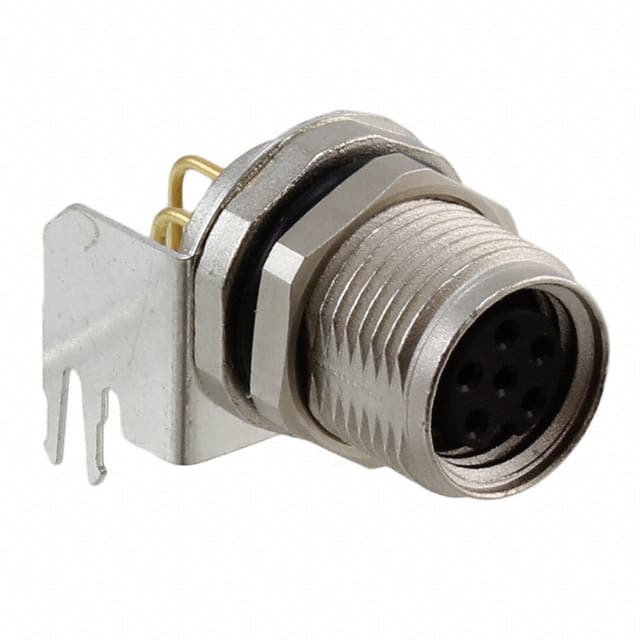

The Phoenix Contact 1424243 is a M8 circular connector assembly designed for sensor/actuator applications. It is a 6-position receptacle with female sockets in a metal shell (zinc die-cast, nickel-plated) and a contact carrier made of PA66. The connector features a threaded fastening system and a right-angle solder termination for board-level mounting through a panel.
Key electrical ratings include a current of 1.5A at 40°C and a voltage rating of 30V AC/DC. The connector provides IP67 ingress protection, making it suitable for dusty or wet environments. The volume resistance is ≤3 mΩ and insulation resistance is ≥100 MΩ. The operating temperature range is -25°C to 85°C per the datasheet.
The mounting type is panel mount with a bulkhead front side nut, using a M10 fastening thread. The connector is compliant to IEC 61076-2-104 and has a flammability rating of UL94 HB.
The connector has 6 positions.
The rated current is 1.5A at 40°C.
The rated voltage is 30V AC/DC.
It is a panel mount connector with a bulkhead front side nut and a M10 fastening thread.
The connector has an IP67 rating (dust tight and waterproof).
The shell is made of zinc die-cast with a nickel finish.
Per the datasheet, the operating temperature range is -25°C to 85°C.
