| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,271 pcs
|
42271 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type |

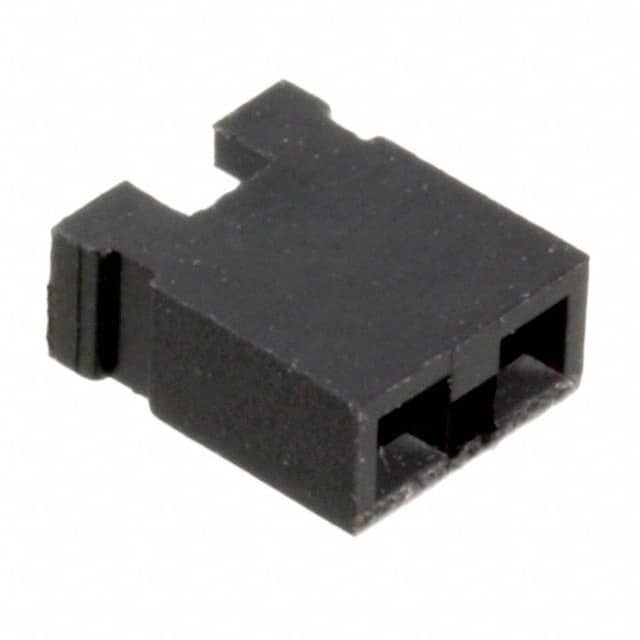

TE Connectivity 142270-3 is a 2 position (1x2) open top shunt with a 2.54mm (0.100") pitch, rated for 3A continuous current. The female sockets accept standard 0.025" square pins. The shunt is designed for through hole mounting with solder termination, providing reliable mechanical and electrical connection. The housing is made of black polybutylene terephthalate (PBT) glass filled material, offering high mechanical strength and a UL94 V-0 flammability rating. Contact finish is Tin with a thickness of 3.00µm (118.1µin). This shunt is suitable for jumper configuration applications in rectangular connector systems. It is listed as RoHS3 compliant and REACH unaffected (unverified).
The 142270-3 shunt has 2 positions in a 1x2 configuration.
The pitch is 2.54mm (0.100").
The current rating is 3A.
The mounting type is through hole, with solder termination.
The housing is made of PBT glass filled with UL94 V-0 rating.
Tin contact finish with 3.00µm (118.1µin) thickness.
RoHS3 compliant (unverified).
