| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,868 pcs
|
8868 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Material Flammability Rating | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Tape & Reel | |
| Type |

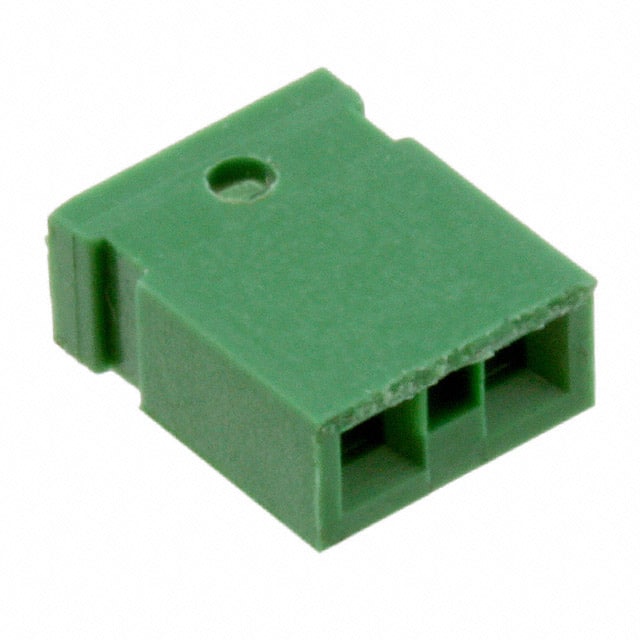

The TE Connectivity 142270-1 is a shunt module IV open-top design with 2 positions arranged in a 1x2 grid. It features a current rating of 3A and a pitch of 2.54mm (0.100"). The housing is made of glass-filled polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, ensuring reliable performance in various environments.
The contacts are finished with gold plating of 16.0µin (0.41µm) thickness, providing excellent conductivity and corrosion resistance. The female socket gender makes it suitable for use as a jumper or shunt on header pins. The green housing color aids in visual identification on the board.
This component is designed for applications requiring a compact, reliable interconnection solution. Its open-top construction allows for easy probing or testing. The 2.54mm pitch is compatible with standard breadboards and prototyping grids.
The current rating is 3A.
The pitch is 2.54mm (0.100").
It has 2 positions arranged in a 1x2 grid.
The housing is glass-filled PBT with a UL94 V-0 rating.
The contacts have a gold finish with a thickness of 16.0µin (0.41µm).
