| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Bolt Size | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Housing Material (Clear) | |
| Housing Material (Opaque) | |
| ISO | |
| Interrupting Rating | |
| Length | |
| Melting I²t | |
| Mounting Torque | |
| Mounting Type | |
| Operating Temperature Range | |
| Response Time | |
| Standard Package Qty | |
| Tape & Reel | |
| Terminal Material | |
| Typical Cold Resistance | |
| Typical Voltage Drop | |
| UL | |
| Voltage Rating | |
| Width |

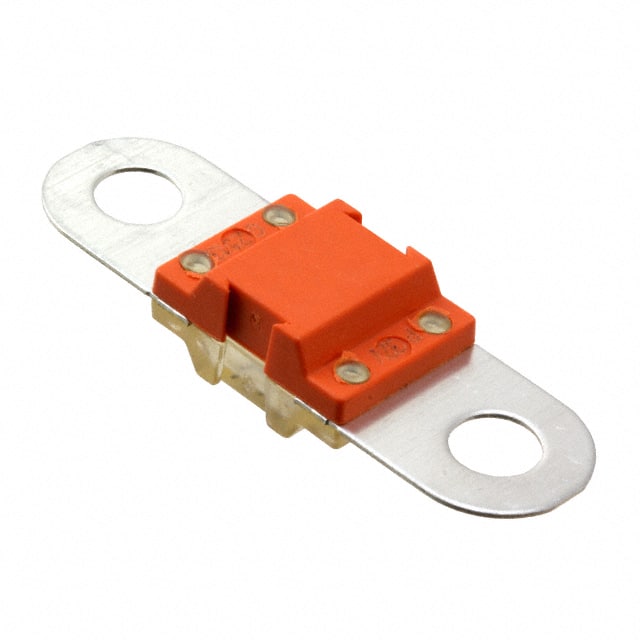

The Littelfuse BF1 Series 142.5631.5302 is a 30 ampere, 58 volt DC slow blow automotive fuse designed for high current wiring harness protection. It features a bolt mount Auto Link package with M5 mounting hardware and tin plated copper terminals for reliable electrical connections.
Electrical characteristics include a breaking capacity of 1000A at 58VDC, typical voltage drop of 105 mV at rated current, and a melting I²t rating of 5100 A²s. The fuse operates over a temperature range of -40°C to +125°C.
The housing is constructed from opaque PET-GF33 material with UL 94 V-0 flammability rating and clear PES material with UL 94 HB rating. The orange color coding indicates the 30 ampere rating per industry standards. This fuse complies with UL 248 Special Purpose Fuse requirements and refers to ISO 8820-5:2015.
The current rating is 30 A.
The voltage rating is 58 V DC.
The breaking capacity is 1000A at 58VDC.
It is a slow blow (Slo-Blo) fuse.
The package is Auto Link and mounting type is bolt mount.
The operating temperature range is -40°C to +125°C.
The typical melting I²t is 5100 A²s.
