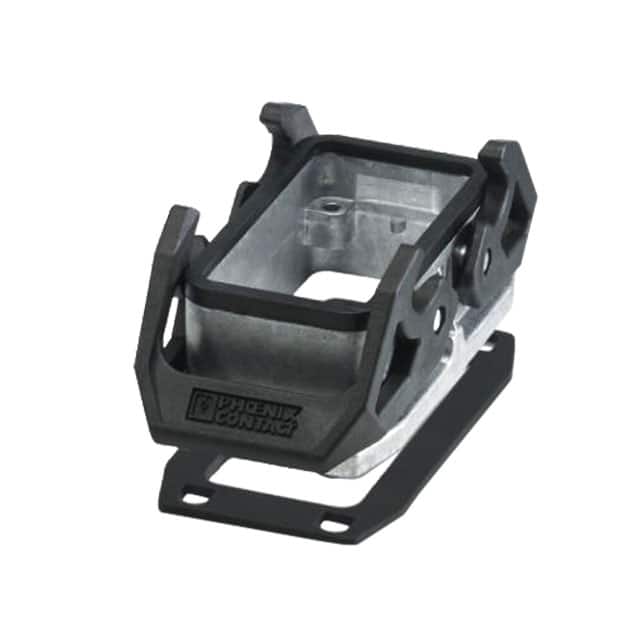

1411322 This is a heavy duty connector base from Phoenix Contact with bottom entry, panel mount, size B10. It features an aluminum die cast housing with IP66/IP67/IP69K protection.
Mfr Part #:

1411322

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a heavy duty connector base from Phoenix Contact with bottom entry, panel mount, size B10. It features an aluminum die cast housing with IP66/IP67/IP69K protection.
✓ Total Stock: 1 pcs

1411322 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1411322 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Features
Height
Housing Material
Ingress Protection
Length
Lock Location
Mounting Type
Operating Temperature
Style
Width
View Similar Products (0)

1411322 Description

Short technical summary and product information.

The 1411322 from Phoenix Contact is a heavy duty connector base designed for panel mount applications with bottom entry. It is part of the size B10 series and features a robust aluminum die cast housing that provides excellent durability in harsh environments. The base is rated IP66/IP67/IP69K, offering dust tightness and protection against water immersion and high-pressure water jets. It is also salt water resistant, making it suitable for marine and offshore applications. The operating temperature range is -40°C to 125°C, ensuring reliable performance in extreme conditions. The dimensions are 93.50mm length, 53.00mm width, and 30.50mm height. The locking mechanism consists of two locking clips on the base bottom. This base is designed for use with compatible hoods and inserts to create a complete heavy duty connector system. Compliance with RoHS, REACH, and MSL 1 is claimed but unverified.

1411322 Quick Information

Product Type: Heavy Duty Connector Base
Canonical Name: Heavy Duty Connector Base, Panel Mount, Bottom Entry, Size B10, Aluminum Die Cast, IP66/IP67/IP69K
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

1411322 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1411322 Features

  • Panel mount base with bottom entry.
  • Aluminum die cast housing.
  • IP66/IP67/IP69K rated protection.
  • Salt water resistant for harsh environments.
  • Operating temperature -40°C to 125°C.

1411322 Applications

  • Ideal for industrial automation enclosures.
  • Used in outdoor heavy machinery.
  • Suitable for marine and offshore applications.
  • Applied in harsh environmental conditions.

1411322 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this connector base?

IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof.

What is the operating temperature range?

-40°C to 125°C.

What is the housing material?

Aluminum, Die Cast.

What is the mounting type?

Panel Mount.

What are the dimensions?

93.50mm x 53.00mm x 30.50mm (3.681" x 2.087" x 1.201").

Is this base salt water resistant?

Yes, it is salt water resistant.

What is the lock location?

Locking Clip (2) on Base Bottom.
