Mfr Part #:

1410975-3

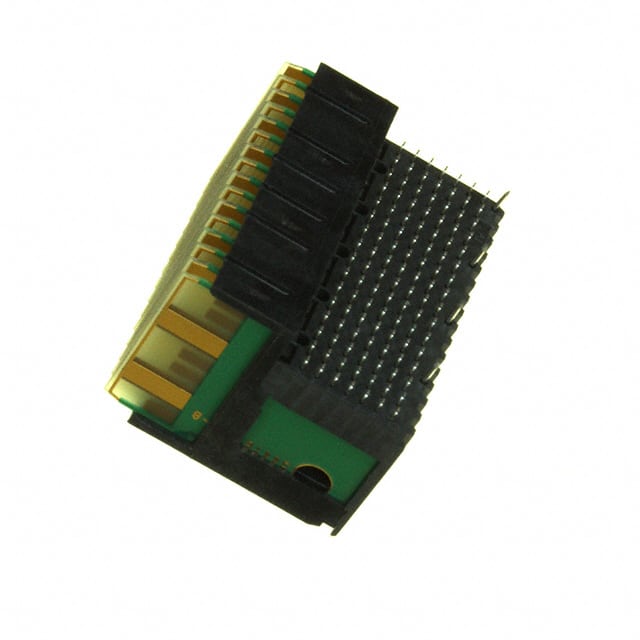

TE Connectivity MULTIGIG Center daughtercard plug connector with 112 positions, 1.80mm pitch, and press-fit termination. Designed for VITA46 applications.

✓ Total Stock: 3,238 pcs

$ Price Range: $126.03 - $166.29

1410975-3 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,228 pcs On Request	3228 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Husky International Electronic ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

1410975-3 Description

Short technical summary and product information.

The TE Connectivity 1410975-3 is a MULTIGIG Center daughtercard plug connector featuring 112 positions arranged in 7 rows and 16 columns. It uses a press-fit termination for reliable board edge mounting with a right-angle orientation.

The connector has a 1.80mm pitch and gold-plated phosphor bronze contacts with 1.27µm gold in the pad contact area. The housing is made of LCP with UL94 V-0 flammability rating and is black in color. It includes a board guide feature for alignment.

This connector is designed for daughtercard usage and mates with TE backplane connectors such as 1410140-1, 1410142-1, 1410966-1, and 1410967-1. The contact layout includes 32 signal pairs, 8 single signals, and 40 ground contacts.

1410975-3 Quick Information

Product Type: Backplane Connector

Series: Center

Canonical Name: TE Connectivity MULTIGIG Center Daughtercard Plug Connector, 112 Positions, Press-Fit

Subcategory: Specialized Backplane Connector

1410975-3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

Lead Free: No

1410975-3 Estimated Pricing

Qty	Low	High
1+	$166.29	$166.29
17+	$136.17	$136.17
34+	$129.68	$129.68
51+	$126.03	$126.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

1410975-3 Features

112 positions in 7 rows by 16 columns.
1.80mm pitch for high-density routing.
Press-fit termination for reliable connection.
Gold-plated phosphor bronze contacts.
UL94 V-0 rated LCP housing.

1410975-3 Applications

Used in VITA46 backplane systems.
Ideal for high-speed daughtercard connections.
Suitable for telecom and data center equipment.
Designed for rugged military and aerospace applications.

1410975-3 FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the 1410975-3 connector have?

The connector has 112 positions, all loaded.

What is the pitch of the 1410975-3 connector?

The pitch is 1.80mm (0.071 inches).

What is the mounting type for this connector?

Board edge, through hole, right angle mounting with press-fit termination.

What is the contact finish on the 1410975-3?

Gold finish with 1.27µm thickness in the pad contact area.

What is the housing material and flammability rating?

LCP housing with UL94 V-0 flammability rating.

What is the contact layout of this connector?

32 signal pairs, 8 single signals, and 40 ground contacts.

Category	Specialized
Manufacturer Name	TE Connectivity
Color	Black
Connector Style	MULTIGIG, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Contact Layout, Typical	32 Signal Pairs, 8 Single Signal, 40 Ground
Contact Material	Phosphor Bronze
Features	Board Guide
Housing Material	LCP
Lead Spacing	1.8 mm
Lead Style	Press-Fit
Mounting Type	Board Edge, Through Hole, Right Angle
Number of Columns	16
Number of Positions	112
Number of Positions Loaded	All
Number of Rows	7
Pitch	1.80mm (0.071")
Termination	Press-Fit
Termination Style	Press-Fit
