1410964-1 TE Connectivity 1410964-1 VITA 46 Center receptacle connector with 144 female blade sockets for backplane applications. Through hole press-fit termination with gold contact finish.
Mfr Part #:

1410964-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1410964-1 VITA 46 Center receptacle connector with 144 female blade sockets for backplane applications. Through hole press-fit termination with gold contact finish.
✓ Total Stock: 3,505 pcs

1410964-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,505 pcs
On Request
2505 pcs On Request 1 On Request On Request 20+ On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request 2026-02-23 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1410964-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Lead Style
Mounting Type
Number of Columns
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Tape & Reel
Termination
View Similar Products (0)

1410964-1 Description

Short technical summary and product information.

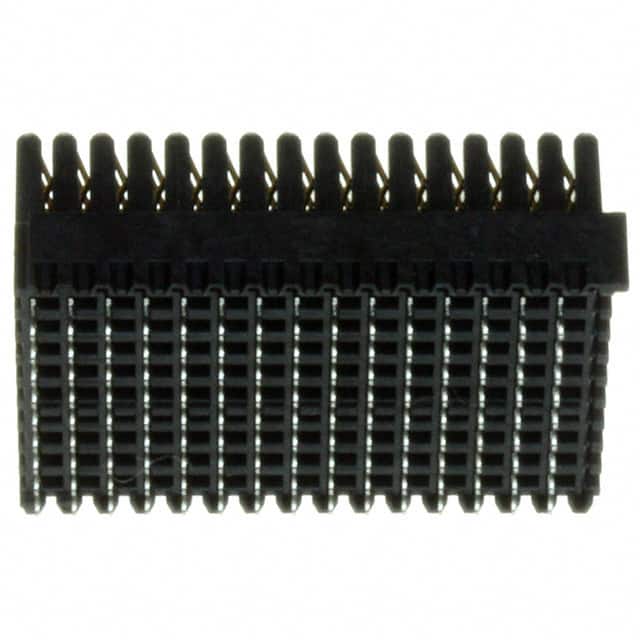

The TE Connectivity 1410964-1 is a VITA 46 Center receptacle connector designed for backplane applications. It features 144 female blade socket contacts arranged in a 9 row by 16 column grid with a 1.80mm pitch. All positions are loaded, providing full signal density.



This connector uses through hole press-fit termination for reliable solderless connection to the printed circuit board. The contact finish is gold with a thickness of 50.0µin (1.27µm) for high reliability and corrosion resistance. The connector body is black in color.



The 1410964-1 is suitable for high-speed differential signaling environments as part of the VITA 46 (VPX) standard, commonly used in military, aerospace, and industrial computing backplanes.

1410964-1 Quick Information

Product Type: Backplane Connector
Series: Multi-gig RT 2
Canonical Name: TE Connectivity VITA 46 Center Receptacle, Female Blade Sockets, 144 Position Backplane Connector
Subcategory: VITA 46 Center

1410964-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1410964-1 Features

  • 144 position VITA 46 center backplane connector.
  • 9 row by 16 column grid arrangement.
  • Through hole press-fit termination style.
  • Gold contact finish, 50.0 microinches thick.
  • All 144 positions loaded for full signal density.

1410964-1 Applications

  • VITA 46 (VPX) backplane interconnect systems.
  • Military and aerospace computing backplanes.
  • High-speed differential signaling applications.
  • Industrial control and embedded system backplanes.

1410964-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1410964-1 connector have?

The connector has 144 positions, with all positions loaded.

What is the mounting type and termination for this part?

Mounting type is through hole and termination is press-fit.

What is the contact finish and thickness?

The contact finish is gold with a thickness of 50.0µin (1.27µm).

What connector style and usage is this part designed for?

Connector style is VITA 46, Center and usage is for backplane applications.

What is the pitch of this connector?

The pitch is 1.80mm (0.071 inches).

How many rows and columns does the 1410964-1 have?

It has 9 rows and 16 columns.

What color is the connector housing?

The connector housing is black.
