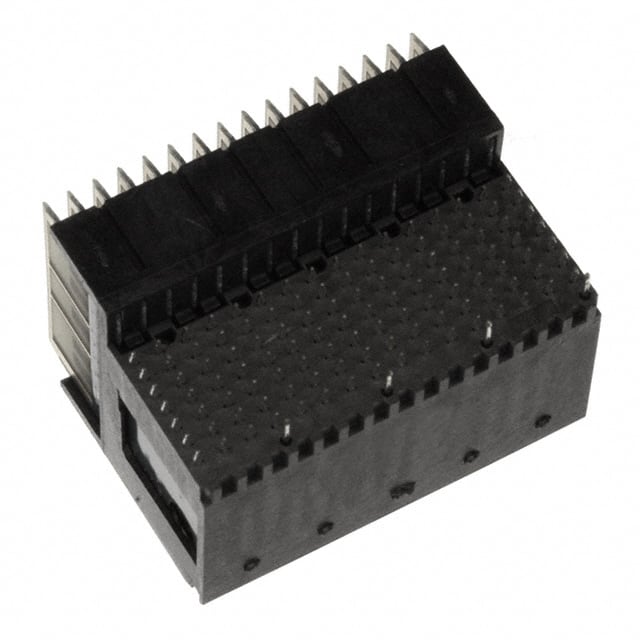

1410190-3 TE Connectivity 1410190-3 is a VITA 46 center plug connector with 112 positions (80 signal, 32 ground) in a 7-row by 16-column layout. It features male blade contacts with gold finish, board edge through-hole right-angle mounting, and solder termination.
Mfr Part #:

1410190-3

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1410190-3 is a VITA 46 center plug connector with 112 positions (80 signal, 32 ground) in a 7-row by 16-column layout. It features male blade contacts with gold finish, board edge through-hole right-angle mounting, and solder termination.
✓ Total Stock: 3,331 pcs

1410190-3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,329 pcs
On Request
2329 pcs On Request 1 On Request On Request 24+ On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request 2026-02-23 21:33:16
Fe Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1410190-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Mounting Type
Number of Columns
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
SVHC Present
Tape & Reel
Termination
View Similar Products (0)

1410190-3 Description

Short technical summary and product information.

The TE Connectivity 1410190-3 is a specialized backplane connector designed for VITA 46 (VPX) systems. It is a plug connector with male blade contacts arranged in a 7-row by 16-column grid, providing 112 total positions. The contact layout is configured as 80 single signal contacts and 32 ground contacts, supporting high-speed differential signaling and robust grounding.



This connector uses a 1.80mm pitch and features a right-angle orientation for board edge mounting. Termination is through-hole solder, ensuring reliable mechanical and electrical connections. The contacts are finished with 50 microinches of gold over the mating area, providing excellent corrosion resistance and durability.



The housing is black and designed for daughtercard applications. The connector is rated with an MSL of 1 (unlimited floor life) and is claimed RoHS3 and REACH compliant. It is suitable for use in rugged embedded computing, defense, aerospace, and industrial applications requiring high-density, high-reliability interconnects.

1410190-3 Quick Information

Product Type: Backplane Connector
Series: VITA D-CARD CTR R/A PLG-16S/E
Canonical Name: TE Connectivity 1410190-3 VITA 46 Center Plug Connector, 112 Positions, Male Blades, Right Angle
Subcategory: Specialized

1410190-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1410190-3 Features

  • VITA 46 center plug connector.
  • 112 positions with 80 signal and 32 ground.
  • 1.80mm pitch, right angle mounting.
  • Gold-plated male blade contacts.
  • Board edge through-hole solder termination.

1410190-3 Applications

  • VPX backplane interconnect systems.
  • Rugged embedded computing platforms.
  • Defense and aerospace electronics.
  • High-speed data acquisition modules.

1410190-3 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1410190-3 connector have?

The connector has 112 positions, all loaded, arranged in 7 rows and 16 columns.

What is the pitch of the 1410190-3 connector?

The pitch is 1.80mm (0.071 inches).

What is the mounting type for this connector?

The mounting type is board edge, through-hole, right angle.

What contact finish does the 1410190-3 use?

The contact finish is gold with a thickness of 50 microinches (1.27 micrometers).

What is the connector style of the 1410190-3?

The connector style is VITA 46, Center.
