| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

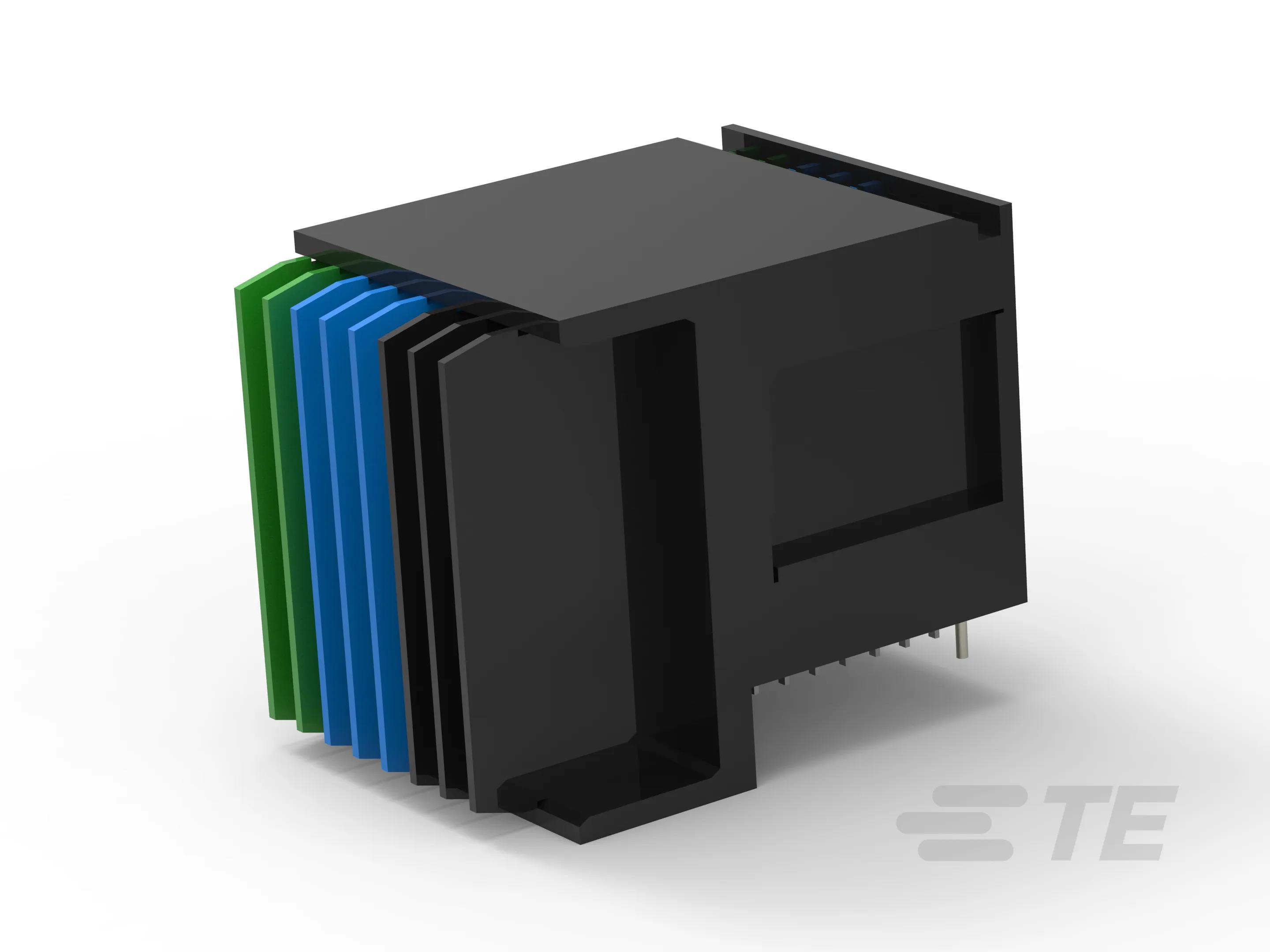

The 1410189-4 is a VITA 46 half left end plug connector designed for daughtercard applications. It has 56 positions with 53 loaded, arranged in 7 rows and 8 columns with a 1.80mm pitch. The connector uses press-fit termination and is mounted via board edge, through hole, right angle. It features gold contact finish of 30µin and includes a board guide. The connector is black in color. This part is suitable for backplane interconnection in high-speed digital systems, supporting the VITA 46 standard for high-density differential signaling.
| Qty | Low | High |
|---|---|---|
| 1+ | $95.80 | $95.80 |
| 10+ | $81.44 | $81.44 |
| 25+ | $76.34 | $76.34 |
| 50+ | $72.70 | $72.70 |
| 100+ | $69.24 | $69.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 56 positions total, with 53 loaded.
The pitch is 1.80mm.
Board edge, through hole, right angle.
Press-fit termination.
Gold with 30µin thickness.
Black.
Yes, it features a board guide.
