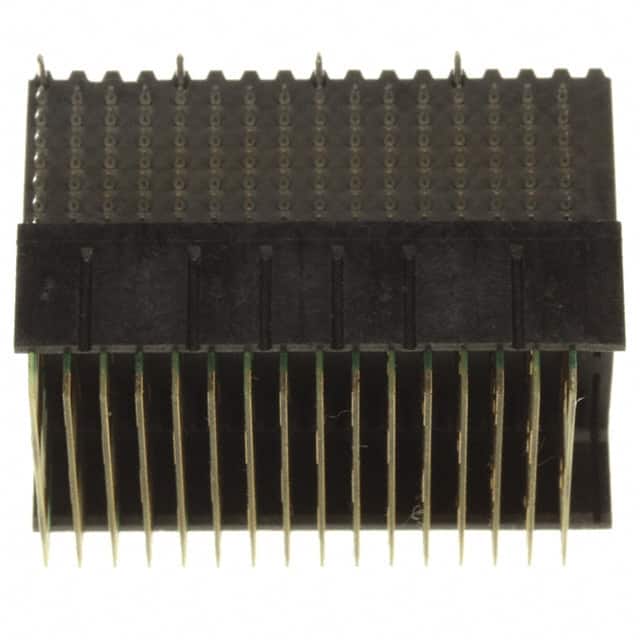

1410188-3 TE Connectivity 1410188-3 MULTIGIG Full, Right End VITA46 plug connector with 112 positions (all loaded), 7 rows, 16 columns, and 1.80mm pitch. Designed for daughtercard board edge mounting with through-hole solder termination.
Mfr Part #:

1410188-3

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1410188-3 MULTIGIG Full, Right End VITA46 plug connector with 112 positions (all loaded), 7 rows, 16 columns, and 1.80mm pitch. Designed for daughtercard board edge mounting with through-hole solder termination.
✓ Total Stock: 2,161 pcs

1410188-3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,080 pcs
On Request
2080 pcs On Request 1 On Request On Request 24+ On Request On Request
AA2DE ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1410188-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Features
Mounting Type
Number of Columns
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
SVHC Present
Tape & Reel
Termination
Termination Style
View Similar Products (0)

1410188-3 Description

Short technical summary and product information.

The TE Connectivity 1410188-3 is a MULTIGIG Full, Right End VITA46 backplane plug connector designed for high-speed differential pair applications. It features 112 positions with a standard contact layout of 32 signal pairs, 8 single signal contacts, and 40 ground contacts across 7 rows and 16 columns.



This connector uses male blade contacts with a gold finish of 50.0 microinches (1.27 µm) for reliable signal integrity. The mounting style is board edge, through-hole, right angle, with solder termination for secure attachment to the daughtercard.



The 1410188-3 includes a board guide feature for alignment during mating. The connector body is black, and the unit is part of the MULTIGIG series, specifically the Full, Right End variant, commonly specified in VITA 46 (VPX) architectures for rugged embedded computing systems.

1410188-3 Quick Information

Product Type: Backplane Connector
Series: Full, Right End
Canonical Name: TE Connectivity MULTIGIG Right End Daughtercard Plug, 112 Positions, 7 Rows, 1.80mm Pitch
Subcategory: Specialized Backplane Connectors

1410188-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1410188-3 Features

  • 112 positions with all contacts loaded.
  • 7 rows and 16 columns arrangement.
  • Gold contact finish, 50 microinches thick.
  • Board edge through-hole right-angle mounting.
  • Includes board guide for alignment.

1410188-3 Applications

  • Used in VITA 46 (VPX) backplane systems.
  • Ideal for rugged embedded computing platforms.
  • Supports high-speed differential signal pairs.
  • Suitable for daughtercard-to-backplane interconnects.

1410188-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and style of the 1410188-3?

It is a MULTIGIG Full, Right End plug connector with male blade contacts.

How many positions does the 1410188-3 have?

The connector has 112 positions, all loaded.

What is the pitch of the 1410188-3 connector?

The pitch is 1.80mm (0.071 inches).

What is the mounting type for this connector?

It is a board edge, through-hole, right-angle mount with solder termination.

What contact finish does the 1410188-3 have?

The contacts have a gold finish with a thickness of 50.0 microinches (1.27 µm).

What is the contact layout of this MULTIGIG connector?

The contact layout is 32 signal pairs, 8 single signal, and 40 ground contacts.

What is the intended usage of the 1410188-3?

It is designed for daughtercard connector usage in backplane systems.
