| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style |

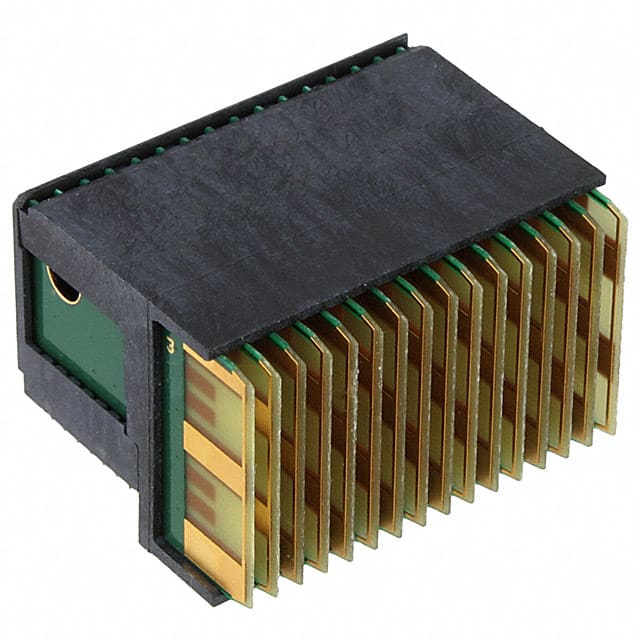

1410187-3 is a VITA 46 Center plug connector from TE Connectivity designed for use in backplane interconnect systems. This connector features 112 total positions arranged in a 7-row by 16-column matrix, with a 1.80mm pitch. All positions are loaded, and the contact layout includes 32 signal pairs, 8 single signals, and 40 ground contacts.
The connector uses male blade contacts with a gold finish of 50.0 microinches (1.27 micrometers) for reliable signal integrity. It is designed for daughtercard usage and mounts to the board edge with a right-angle orientation. Termination is press-fit, providing a solderless connection ideal for high-density backplane assemblies. The connector includes a board guide feature for alignment and is black in color.
This connector has 112 positions, all loaded.
The pitch is 1.80mm (0.071 inches).
Mounting type is board edge, through hole, right angle.
