| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,383 pcs
|
2383 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | 2026-06-03 03:15:50 | |
|
1,184 pcs
|
1184 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-23 21:33:16 | |
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-03 03:15:50 | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Data Rate | |
| Density | |
| Features | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mount Angle | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

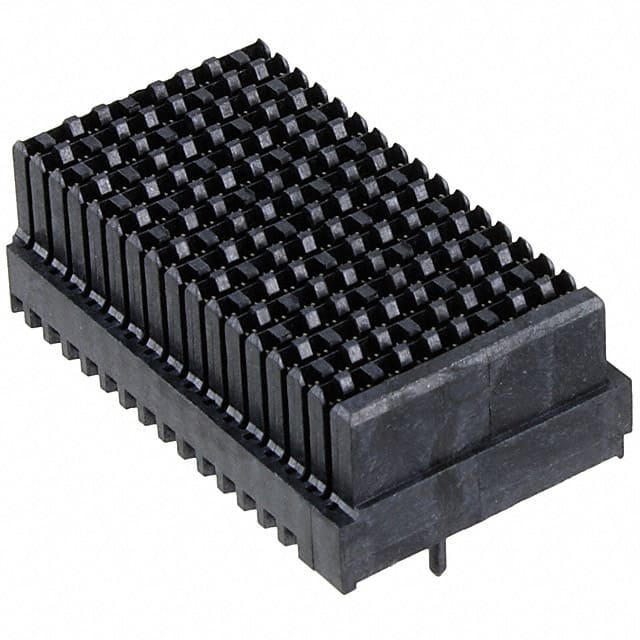

The TE Connectivity 1410142-1 is a specialized backplane connector designed for VITA 41/46 (VPX) applications. It is a receptacle with female blade sockets configured as a right-end module for the switch slot. The connector has 144 positions loaded in a 9-row by 16-column grid with a contact pitch of 1.80mm and a card slot pitch of 20.3mm. It supports data rates up to 6.5 Gb/s and offers a density of 85 lines per inch. The housing is made of black liquid crystal polymer (LCP) with a UL 94V-0 flammability rating. Contacts are phosphor bronze with 50µin gold plating on the mating area and tin-lead over nickel on solder tails. Termination is press-fit for reliable through-hole mounting. The connector includes a board guide feature. It is RoHS compliant (always EU RoHS compliant) but not ELV compliant. This connector is part of the MULTIGIG RT product family and is suitable for high-speed backplane systems requiring VITA 46/41 compatibility.
144 positions, all loaded.
Contact pitch is 1.80mm (0.071").
Through hole, vertical mount with press-fit termination.
Up to 6.5 Gb/s.
Gold plating, 50µin (1.27µm) on mating area.
Yes, always EU RoHS compliant but not ELV compliant.
T2-R08-V, for switch slot.
