| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination |

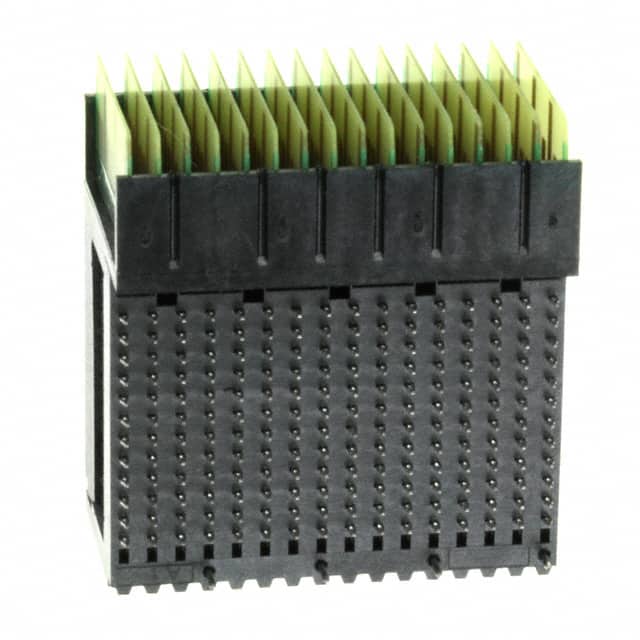

The TE Connectivity 1410137-1 is a VITA 41 center plug connector designed for daughtercard applications in backplane systems. It features 192 positions arranged in 12 rows and 16 columns with a 1.80mm pitch, providing 48 signal pairs and 96 ground contacts. The connector uses male blade contacts with a gold finish of 30.0µin thickness for reliable signal integrity.
This connector is mounted via board edge, through hole, right angle configuration with press-fit termination, eliminating the need for soldering. It includes a board guide feature for alignment during mating. The connector body is black and supports a contact layout typical of VITA 41 standards.
Designed for high-density backplane interconnects, this plug is suitable for use in telecommunications, data communications, and industrial computing systems requiring robust and reliable connections. The press-fit termination allows for efficient assembly and reduced manufacturing costs.
192 positions, all loaded.
1.80mm (0.071 inches).
Board edge, through hole, right angle with press-fit termination.
Gold with 30.0µin (0.76µm) thickness.
VITA 41, center.
48 signal pairs and 96 ground contacts.
Includes a board guide for alignment.
