| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination |

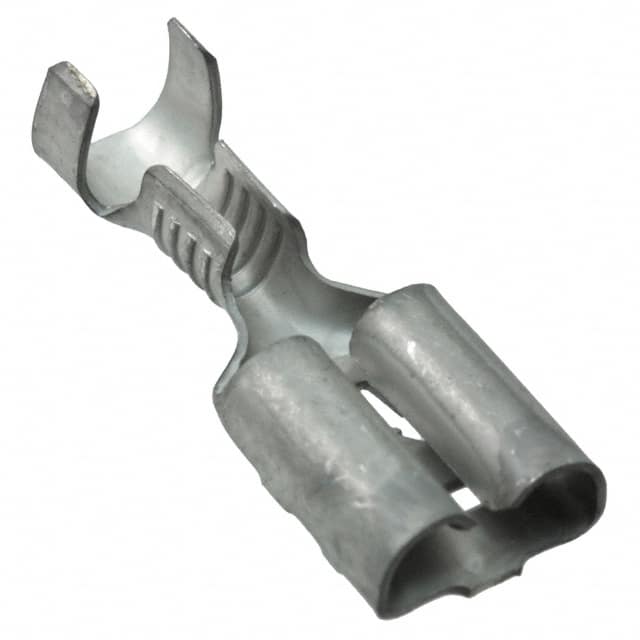

The TE Connectivity 141013-2 is a standard female quick disconnect receptacle designed for free-hanging, in-line applications. It features a 6.35mm (0.250") tab width, 0.81mm (0.032") tab thickness, and a 7.75mm (0.305") tab length, providing a reliable connection for quick-disconnect systems.
The receptacle is constructed from brass with a tin contact finish, ensuring good conductivity and resistance to corrosion. It uses a crimp termination method and is non-insulated, making it suitable for use where insulation is not required or where additional protection is provided by the assembly.
With an overall length of 19.13mm (0.753"), the 141013-2 is a compact, robust component for wire harnesses and electrical assemblies. The free-hanging mounting type allows for easy installation and maintenance in various applications.
The tab width is 0.250" (6.35mm).
It uses crimp termination.
No, it is non-insulated.
The contact is made of brass with a tin finish.
Free hanging (in-line).
