| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

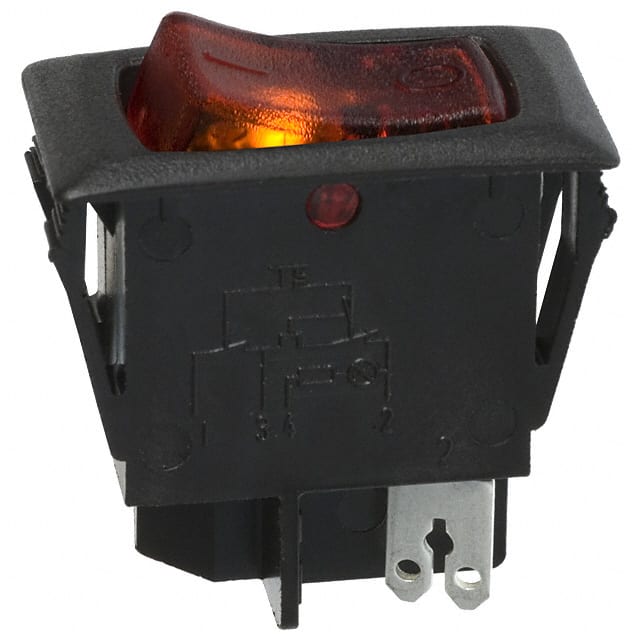

The E-T-A 1410-F110-P1F1-W14QE3-2A is a thermal circuit breaker with a 2A current rating and a 250VAC/48VDC voltage rating. This device is designed for panel mounting and features a rocker actuator.
Key technical specifications include a thermal breaker type, single pole configuration, and a red illumination indicator. The circuit breaker operates within an ambient temperature range of -20 °C to +70 °C. It meets UL1077 and CSA C22.2 No 235 approval standards.
Typical applications for this circuit breaker include transformers, motors, and gear protection in household appliances, office equipment, and hand tools. Its compact design combines fuse replacement functionality with an ON/OFF switch, offering maximum device availability through easy resetting after an overcurrent trip.
The current rating is 2 A.
The voltage rating is 250 VAC and 48 VDC.
It has a red illuminated rocker actuator.
The ambient temperature range is -20 °C to +70 °C.
It is approved to CSA C22.2 No 235 and UL1077.
For 0.63 to 2 A, the interrupting capacity is 12 x IN. For 2.5 to 8 A AC, it is 8 x IN AC with a maximum of 50 A. For 10 A AC, it is 6 x IN. For 3.15 to 10 A DC, it is 10 x IN DC.
The actuating area has IP30 protection, and the terminal area has IP00 protection.
