| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connection Type | |
| Frame Type | |
| Mounting Type | |
| SVHC Present | |
| Voltage Rating | |
| Weight |

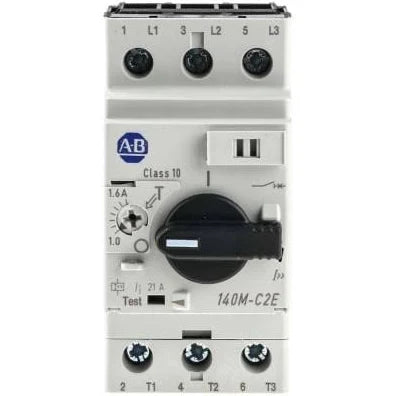

The Allen-Bradley 140M-C2E-B16 is a compact, 3-pole motor protection circuit breaker (MPCB) designed for magnetic-only motor protection in low-current applications. It operates within a 1.0-1.6 Amp range, with a rated operational current of 1.6A and a magnetic trip current of 21A.
This circuit breaker features a high short-circuit breaking capacity, with an ultimate breaking capacity of 100 kA at 400/415VAC and a service breaking capacity of 100 kA at 415VAC. It is suitable for three-phase systems up to 600V and provides instantaneous magnetic protection.
The 140M-C2E-B16 is designed for easy installation with DIN rail mounting. Its IP20 rating indicates protection against solid objects greater than 12.5mm. This component is part of the Allen-Bradley Bulletin 140M family, engineered for reliable motor protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operational current is 1.6 A.
The magnetic trip current is 21 A.
The rated ultimate short-circuit breaking capacity is 100 kA at 400/415VAC, and the rated service short-circuit breaking capacity is 100 kA at 415VAC.
The kW rating is 0.55 kW at AC-3, 415V.
The IP rating is IP20.
It is designed for DIN rail mounting.
The voltage rating is 600 V.
