| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

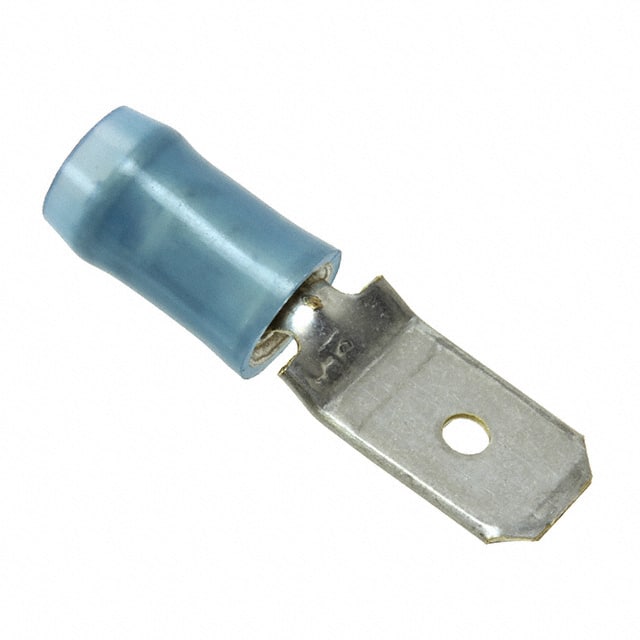

The TE Connectivity 140971-2 is a male quick disconnect tab terminal designed for free hanging (in-line) mounting. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a tab length of 0.370" (9.40mm). The terminal accepts 13-17 AWG wire and uses a crimp termination style. The contact is made of brass with a tin plating, and the non-mating end is insulated. The overall length is 23.50mm (0.925") and the terminal is blue in color. A serrated termination feature provides secure wire grip and strain relief. This terminal is suitable for a variety of power and signal applications in automotive, industrial, and consumer electronics where reliable quick disconnect connections are required.
The tab width is 0.250" (6.35mm).
It accepts 13-17 AWG wire.
Crimp termination.
Brass contact with tin plating.
Yes, the non-mating end is insulated.
23.50mm (0.925").
Blue.
