| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Length | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section Flexible | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Contact Surface Material | |
| Country of Origin | |
| Current Rating (Amps) | |
| Custom Tariff Number | |
| Fastening Type | |
| Grip Body Material | |
| Halogen Free | |
| Ingress Protection | |
| Insertion Force | |
| Insertion/Withdrawal Cycles | |
| Lead Style | |
| Locking Type | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Packing Unit | |
| Primary Material | |
| Protection Class | |
| Pull-out Force | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Termination | |
| Torque | |
| Voltage Rating | |
| Weight per Piece | |
| Wire Colors | |
| Wire Diameter incl. Insulation | |
| Wire Material | |
| Wrench Size |

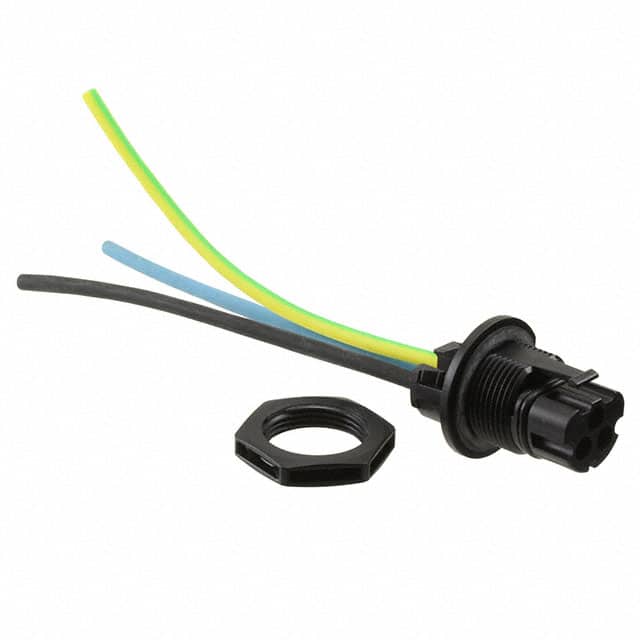

The Phoenix Contact 1409219 is a PRC series device connector designed for rear mounting. It is a 3-position plug with male pins, terminated with 150 mm wire leads. The connector features a snap-in latch lock fastening system and is mounted via a bulkhead front side nut.
Rated for 35 A (with 6 mm² conductor cross section) and 690 V, this connector is built with a black plastic shell made from polyphenylene ether (PPE). The contacts are copper with a silver-plated surface. The connector offers high ingress protection rated IP65, IP66, IP68, and IP69K, making it suitable for harsh environments. The material flammability rating is UL94 V-0.
The connector has a threaded union nut with a 32 mm wrench size and a tightening torque of 2.5 Nm. It is designed for 50 insertion/withdrawal cycles. The product is manufactured in Germany and carries a custom tariff number 85444290.
The rated current is 35 A with a 6 mm² conductor cross section.
The rated voltage is 690 V.
The connector has 3 positions.
It is a panel mount with a bulkhead front side nut feature.
It is rated IP65, IP66, IP68, and IP69K (dust tight, water resistant, waterproof).
The fixed cable length is 150 mm.
