| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

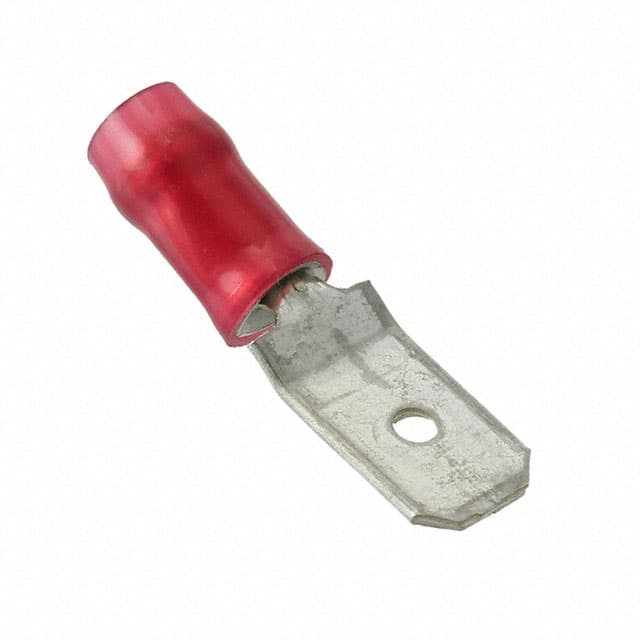

The TE Connectivity 140896-2 is a standard male quick connect tab terminal designed for reliable wire-to-wire or wire-to-board connections. It features a 0.250" (6.35mm) tab width and 0.370" (9.40mm) tab length with a thickness of 0.032" (0.81mm), making it compatible with common 0.250" series quick disconnect receptacles.
The terminal is constructed from brass with a tin contact finish, providing good conductivity and corrosion resistance. It is designed for crimp termination and accepts 17-20 AWG wire. The non-mating end is insulated, and the overall length is 23.50mm (0.925"). The red color aids in wire gauge identification.
This component is intended for free hanging (in-line) mounting applications, commonly used in automotive, appliance, and industrial control systems where quick and secure connections are needed.
The tab width is 0.250" (6.35mm).
It accepts 17-20 AWG wire.
Crimp termination.
Brass contact with tin finish.
The non-mating end is insulated.
23.50mm (0.925").
