| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Industrial Grade | |
| Insulation | |
| Length | |
| Mounting Type | |
| Overall Length | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

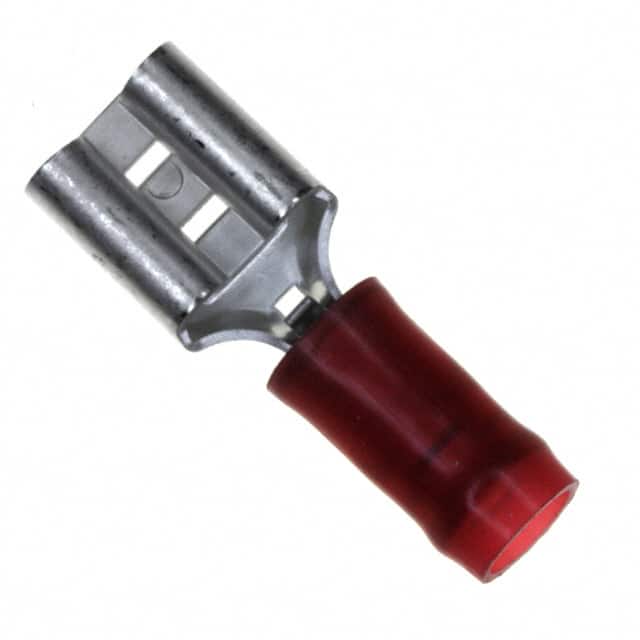

The TE Connectivity 140805-2 is a female quick disconnect terminal from the PIDG FASTON series. Designed for free hanging (in-line) mounting, this terminal uses a reliable crimp termination method to secure 17-22 AWG wire. The tab dimensions are 0.197" (5.00mm) width, 0.031" (0.79mm) thickness, and 0.311" (7.90mm) length.
The contact is made of brass with a silver finish, ensuring good electrical conductivity and resistance to corrosion. The terminal is color-coded red, indicating its wire size range. The non-mating end is insulated, which helps prevent short circuits and accidental contact with live conductors.
This component is commonly used in power and signal connections where a secure, quick-disconnect interface is needed. The PIDG (Pre-Insulated Diamond Grip) design provides a firm crimp and strain relief for the wire insulation.
The terminal accepts 17-22 AWG wire.
The tab width is 0.197" (5.00mm).
The termination method is crimp.
The non-mating end is insulated, providing protection against accidental short circuits. The insulation color is red.
The contact material is brass with a silver finish.
RoHS status is listed as RoHS3 Compliant, but this information is unverified and should be reviewed for accuracy.
The overall length is 21.59mm (0.850").
