| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80,000 pcs
|
80000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Length (Overall) | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

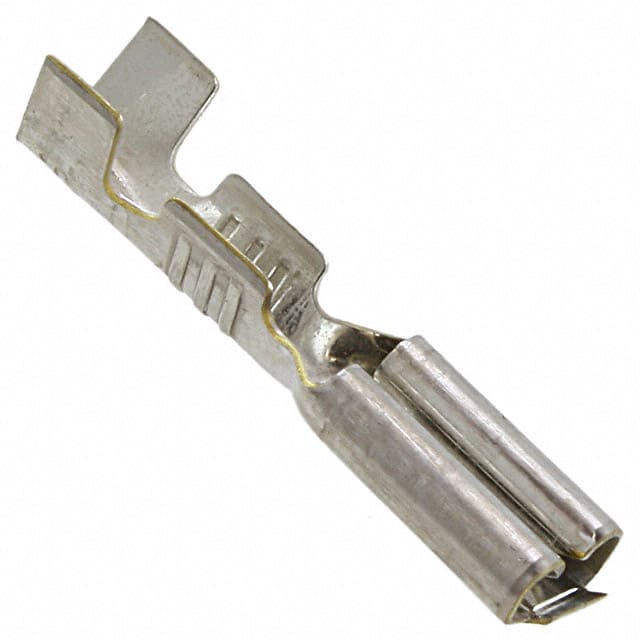

The TE Connectivity 140717-2 is a standard female quick connect receptacle designed for 18-22 AWG wire. It features a crimp termination and a tab width of 0.110" (2.79mm) with a tab length of 0.250" (6.35mm) and tab thickness of 0.020" (0.51mm). The contact is made of brass with a tin finish, providing reliable electrical performance.
This non-insulated connector is intended for free hanging (in-line) mounting applications. The overall length is 16.08mm (0.633"). It is suitable for use in a variety of wire-to-wire or wire-to-board quick disconnect systems where a secure, removable connection is required.
The 140717-2 is designed for 18-22 AWG wire.
The tab width is 0.110" (2.79mm).
It uses a crimp termination.
The contact is made of brass with a tin finish.
No, it is non-insulated.
