| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector Gender | |
| 1st Connector Mounting Type | |
| 1st Connector Number of Positions | |
| 1st Connector Number of Positions Loaded | |
| 1st Connector Orientation | |
| 1st Connector Shell Size | |
| 1st Connector Type | |
| 2nd Connector Type | |
| AWG Signal Line | |
| Ambient Temperature (Cable Fixed) | |
| Ambient Temperature (Operation) | |
| Assembly Configuration | |
| Cable Material | |
| Cable Type | |
| Cable Weight | |
| Color | |
| Conductor Insulation Material | |
| Conductor Material | |
| Contact Carrier Material | |
| Contact Material | |
| Contact Resistance | |
| Contact Surface Material | |
| Core Diameter | |
| External Cable Diameter | |
| Grip Body Material | |
| Halogen Free | |
| Industrial Grade | |
| Ingress Protection | |
| Insertion/Withdrawal Cycles | |
| Insulation Resistance | |
| Knurl Material | |
| Length | |
| Minimum Bending Radius | |
| Mounting Type | |
| Nominal Voltage (Cable) | |
| Outer Sheath Material | |
| Overall Twist | |
| Pollution Degree | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Shielding | |
| Standard Package Quantity | |
| Standards/Regulations | |
| Surge Voltage Category | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| UL AWM Style | |
| UL Nominal Current | |
| UL Nominal Voltage | |
| UL Standards | |
| UV Resistant | |
| Usage | |
| Wire Colors |

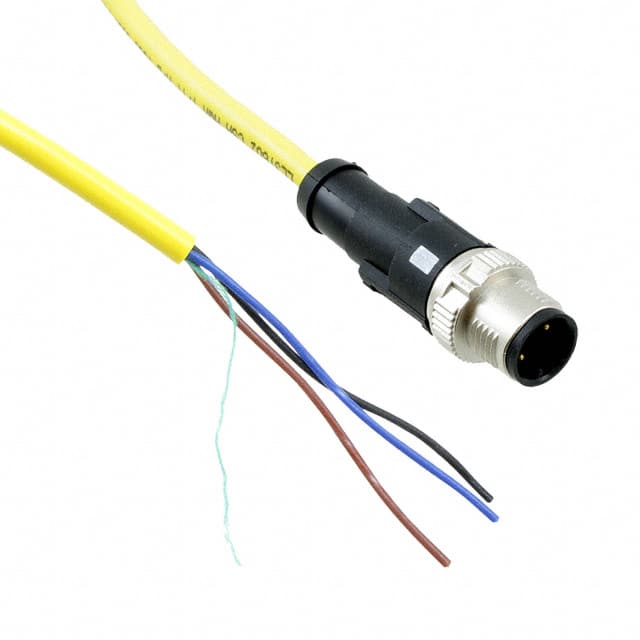

The Phoenix Contact 1406304 is a sensor/actuator cable assembly featuring a 3-position M12 male connector with A-coding on one end and wire leads on the other. The cable is 2 meters long with a yellow PVC jacket, designed for industrial environments requiring reliable signal and power transmission.
Electrical specifications include a rated current of 4 A at 40°C and a rated voltage of 250 V. The assembly offers contact resistance of ≤5 mΩ and insulation resistance of ≥100 MΩ. It is rated for surge voltage category II and pollution degree 3.
The connector provides IP65/IP67/IP68 ingress protection, making it suitable for harsh environments. The cable is unshielded with 22 AWG signal lines, twisted 3-wire construction, and a minimum bending radius of 37.6 mm for flexible installation. Operating temperature range is -25°C to 90°C for the plug/socket and -30°C to 105°C for the cable in fixed installation.
The assembly is compliant with IEC 61076-2-101 and UL AWM style 2517. It is packaged individually and terminated with wire leads for easy field connection.
250 V
-25 °C to 90 °C for the plug/socket, and -30 °C to 105 °C for the cable in fixed installation.
1 piece per package.
RoHS3 Compliant (unverified).
2 meters (6.56 feet).
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof.
M12 male receptacle with A-coding.
