| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Voltage Rating |

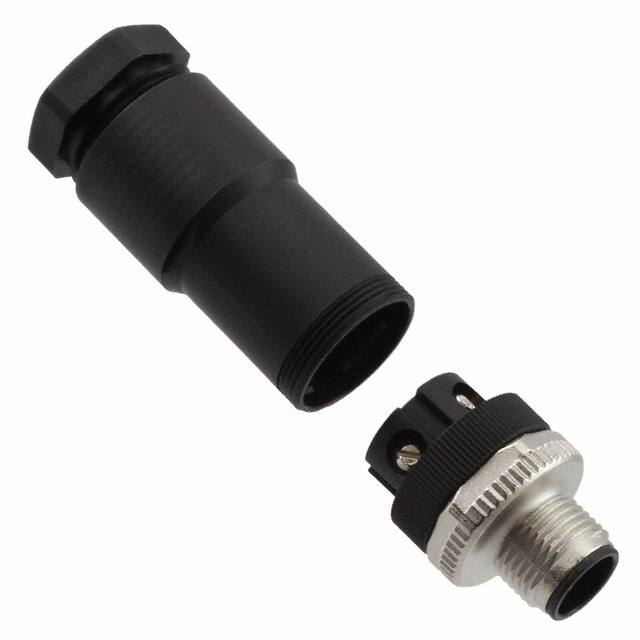

The Phoenix Contact 1404415 is a circular connector plug designed for reliable power and signal connections in industrial environments. It features a metal shell made of zinc die cast with a nickel finish, providing durability and corrosion resistance. The connector uses a threaded fastening type for secure mating and includes a backshell for cable strain relief.
This plug has 4 male pin positions with gold-plated contacts, ensuring low resistance and reliable signal integrity. The screw termination allows for easy field installation without special tooling. It accepts cable diameters from 0.315" to 0.394" (8.00mm to 10.00mm).
The connector is rated for 250V and has an IP67 ingress protection rating, making it dust-tight and protected against temporary water immersion. It operates over a temperature range of -40°C to 85°C. The housing material has a UL94 V-0 flammability rating.
This is a plug with male pins and 4 positions (power).
The voltage rating is 250 V.
Free hanging (in-line) mounting.
IP67 - dust tight and waterproof.
-40°C to 85°C.
Screw termination.
