| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Signal Line | |
| Acceleration | |
| Ambient Temperature Operation (@ Male connector / female connector) | |
| Ambient Temperature Operation (@ cable, fixed installation) | |
| Ambient Temperature Operation (@ cable, flexible installation) | |
| Ambient Temperature Operation (@ valve plug) | |
| Bending Radius | |
| Cable Abbreviation | |
| Cable Length | |
| Cable Type | |
| Cable Type (Abbreviation) | |
| Coding | |
| Conductor Cross Section | |
| Conductor Material | |
| Conductor Resistance | |
| Conductor Structure Signal Line | |
| Connector | |
| Contact Carrier Material | |
| Contact Material | |
| Contact Surface Material | |
| Core Diameter Including Insulation | |
| Degree of Protection | |
| External Cable Diameter | |
| External Sheath Color | |
| Flame Resistance | |
| Halogen Free | |
| Insertion/Withdrawal Cycles | |
| Insulation Resistance (Minimum) | |
| Material Conductor Insulation | |
| Material Housing Valve Plug | |
| Material of Grip Body | |
| Material, Knurls | |
| Minimum Order Quantity | |
| Nominal Voltage, Conductor | |
| Number of Bending Cycles | |
| Number of Positions | |
| Outer Sheath Material | |
| Overall Twist | |
| Packing Unit | |
| Pollution Degree | |
| Protective Circuit/Component | |
| Rated Current | |
| Rated Voltage | |
| Sealing Material | |
| Smallest Bending Radius (Fixed Installation) | |
| Standards/Regulations | |
| Status Display | |
| Storage Temperature | |
| Surge Voltage Category | |
| Tape & Reel | |
| Termination | |
| Test Voltage, Conductor | |
| Traversing Path | |
| Traversing Rate | |
| UL AWM Style | |
| Valve Plug Contact Insert Material | |
| Volume Resistance | |
| Wire Colors |

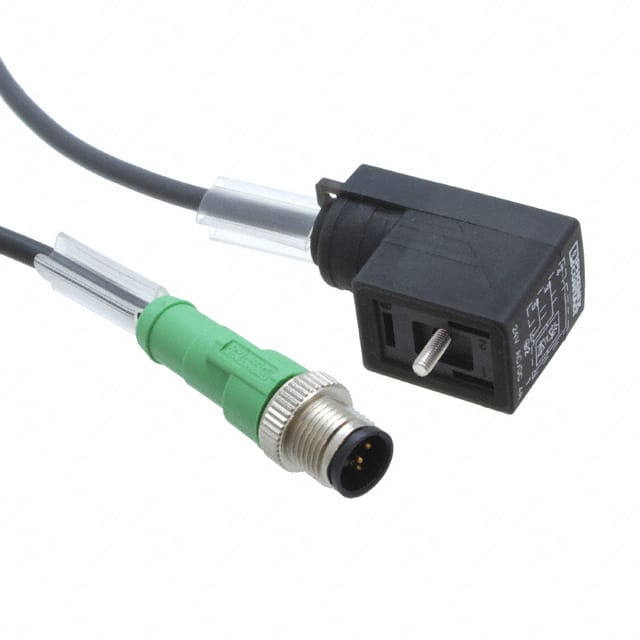

The Phoenix Contact 1400773 is a 0.6-meter sensor/actuator cable designed for industrial applications. It features a straight M12, A-coded plug on one end and a BI valve plug on the other, with 3 positions.
The cable is constructed with a PUR halogen-free black jacket, offering durability and resistance to environmental factors. It is rated for a current of 4A at 40°C and a voltage of 24V. The cable has an external diameter of 4.5 mm and a conductor cross-section of 3x 0.5 mm².
Key electrical specifications include a volume resistance of less than 5 mΩ and an insulation resistance greater than 100 MΩ. The operating temperature range for the connectors is -25°C to 90°C, while the valve plug operates between -20°C to 85°C. The cable itself can withstand fixed installation temperatures from -40°C to 80°C and flexible installation temperatures from -20°C to 80°C.
This cable complies with IEC 61076-2-101 standards for M12 connectors and offers a degree of protection of IP65/67. It also features a Z diode protective circuit and a status indicator LED.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for this cable is 4A at 40°C.
The rated voltage for this cable is 24V.
The cable length is 0.6 meters.
The operating temperature range for the male and female connectors is -25°C to 90°C.
The degree of protection is IP65/67.
Yes, the cable is halogen-free in accordance with DIN VDE 0472 part 815.
