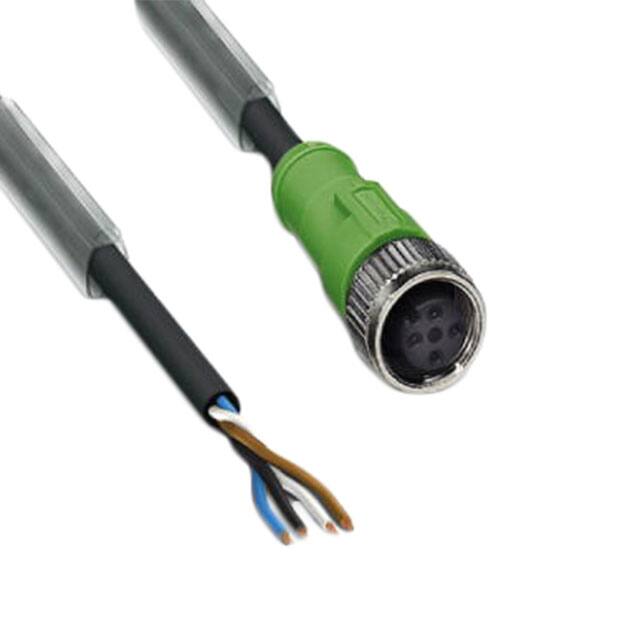

1400420 M12 female socket to wire leads cable assembly from Phoenix Contact. 4-position, A-coded, with 1 meter PUR cable. Rated IP65, IP67, and IP68.
Mfr Part #:

1400420

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
M12 female socket to wire leads cable assembly from Phoenix Contact. 4-position, A-coded, with 1 meter PUR cable. Rated IP65, IP67, and IP68.
✓ Total Stock: 1 pcs

1400420 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1400420 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
1st Connector Gender
1st Connector Mounting Type
1st Connector Number of Positions
1st Connector Number of Positions Loaded
1st Connector Orientation
1st Connector Shell Size
1st Connector Type
2nd Connector Type
Acceleration
Assembly Configuration
Cable Material
Cable Type
Color
Conductor Material
Contact Material
Halogen Free
Industrial Grade
Ingress Protection
Insulation Resistance
Lead Style
Length
Number of Positions
Rated Current
Rated Voltage
Shielding
Usage
View Similar Products (0)

1400420 Description

Short technical summary and product information.

This Phoenix Contact 1400420 SAC-4P-1,0-PUR/M12FS is a sensor/actuator cable assembly featuring a straight M12 female socket (A-coded) on one end and unterminated wire leads on the other. The round, unshielded cable is made from polyurethane (PUR), is halogen-free, and has a black-gray (RAL 7021) outer sheath. It contains 4 conductors with 22 AWG stranded copper litz wire.



The cable assembly is rated for a current of 4 A at 40 °C and a voltage of 250 V, with a conductor resistance of ≤ 58 Ω/km. It provides an insulation resistance of at least 100 MΩ. The housing and grip body are made of TPU, with a zinc die-cast, nickel-plated knurl and NBR sealing, contributing to its IP65, IP67, and IP68 ingress protection ratings, making it suitable for demanding industrial environments.



The assembly is designed for flexible installation, capable of 4 million bending cycles at a 47 mm radius. It is RoHS compliant and carries a UL AWM style rating (20549/10493). The connector supports at least 100 insertion/withdrawal cycles. The free conductor end has a 50 mm stripping length for easy termination.

1400420 Quick Information

Product Type: Circular Cable Assembly
Canonical Name: Phoenix Contact SAC-4P-1,0-PUR/M12FS Sensor/Actuator Cable, M12 Female Socket to Wire Leads, 1m
Subcategory: M12 Circular Cable Assembly

1400420 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1400420 Features

  • M12 A-coded female socket connector.
  • 4-position, 22 AWG conductors.
  • 1 meter flexible PUR cable.
  • Rated IP65, IP67, and IP68.
  • RoHS compliant halogen-free cable.

1400420 Applications

  • Ideal for industrial sensor connections.
  • Suited for actuator wiring in automation.
  • Used in harsh environment field installations.
  • Suitable for drag chain applications.

1400420 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the connector type on this cable assembly?

It has a straight M12 female (socket) connector, A-coded, with 4 positions.

What is the cable length?

The cable length is 1.00 m (3.28 ft).

What is the ingress protection rating?

The assembly is rated IP65, IP67, and IP68.

What are the electrical ratings?

Rated current is 4 A at 40 °C, rated voltage is 250 V, and insulation resistance is ≥ 100 MΩ.
