| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,300 pcs
|
5300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Features | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Termination | |
| Termination Style |

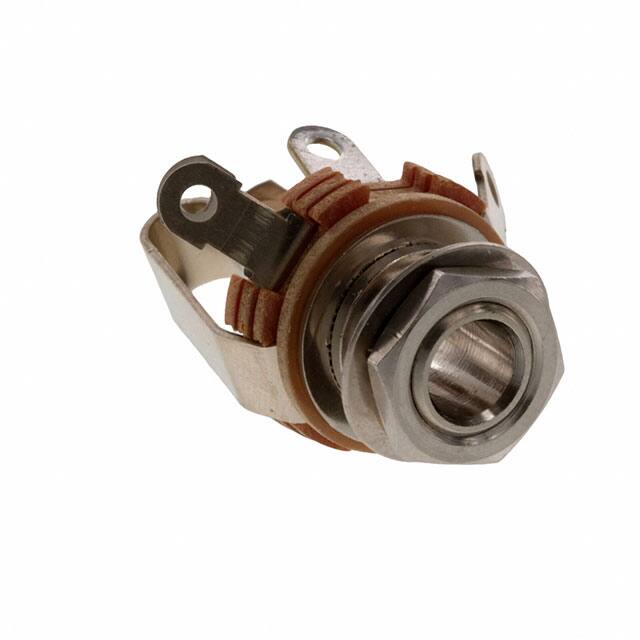

The 13E from Conxall/Switchcraft is a 6.35mm (1/4") mono phone jack connector designed for panel-mount audio applications. It features a female gender with 2 conductors and 4 contacts, providing a single signal line (mono) connection. The connector is unshielded and includes a single internal switch, allowing for signal routing or muting functions.
Mounting is achieved through panel mount with through-hole solder eyelet terminals, ensuring a secure mechanical and electrical connection. The connector includes mounting hardware and a thread lock feature. The operating temperature range is -20°C to 65°C, making it suitable for indoor and controlled environments.
Typical applications include audio input/output jacks for musical instruments, amplifiers, mixers, and other audio equipment. The 6.35mm diameter is standard for professional audio connectors.
Panel Mount, Through Hole.
2 Conductors, 4 Contacts.
Mono.
6.35mm (0.250", 1/4") - Headphone.
-20°C ~ 65°C.
Yes, it has a single internal switch.
Solder Eyelet(s).
