| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Operating Temperature | |
| Storage Temperature | |
| Weight |

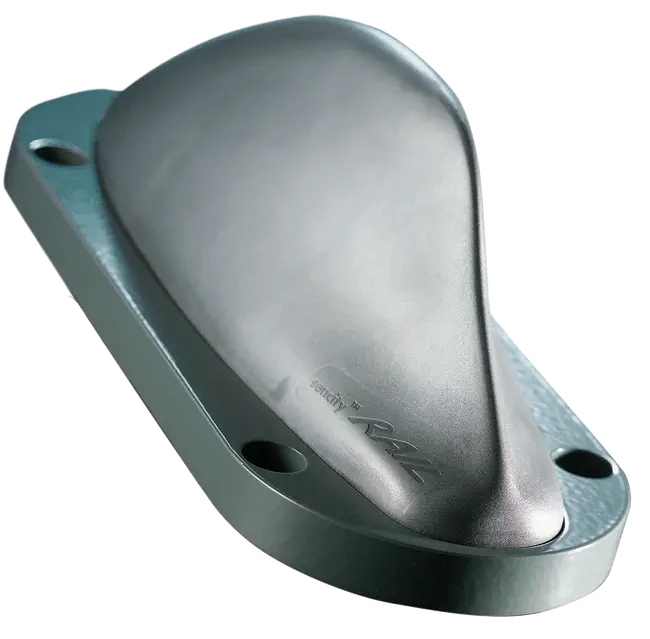

The HUBER+SUHNER SENCITY® Rail Antenna, part number 1399.17.0044, is engineered for demanding outdoor environments, particularly for onboard use in train-to-ground communication systems. This robust roof antenna covers multiple frequency bands including Cellular (870-960 MHz, 1710-2170 MHz, 3400-3700 MHz), Wi-Fi (2400-2700 MHz, 5150-5875 MHz), and GPS (1574.4-1576.44 MHz).
Key features include an integrated GPS receiver with a Low Noise Amplifier (LNA), a VSWR of 1.5 across most bands, and gains up to 9.5 dBi. The antenna is built to withstand harsh conditions, boasting an IP68 ingress protection rating and an operating temperature range of -40°C to 85°C. Its durable construction meets stringent railway standards such as EN 50155, and it is fire retardant according to DIN 5510-2, BS 6853, NF F16-101/102, and EN 45545-2.
The antenna's mechanical specifications include a weight of 1.2 kg and dimensions of 90 mm x 100 mm x 260 mm. The radome is made from ASA (Acrylester-Styrol-Acrylnitril) in RAL 7043 (dark grey), and the baseplate is aluminum, also in RAL 7043. This design ensures reliable performance and longevity in transportation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The antenna covers 870-960 MHz, 1710-2170 MHz, 2400-2700 MHz, 3400-3700 MHz, and 5150-5875 MHz.
The typical gain is 6 dBi at 870-960 MHz, 8.5 dBi at 1710-2170 MHz, 9.5 dBi at 2400-2700 MHz, 9.5 dBi at 3400-3700 MHz, and 8.5 dBi at 5150-5875 MHz.
The maximum VSWR is 1.5 for all bands except 5150-5875 MHz where it is 2.0.
Yes, it includes a GPS LNA covering 1574.4-1576.44 MHz with a VSWR of 1.8.
The operating temperature range is -40 °C to 85 °C.
The antenna is rated IP68.
The radome is made of ASA (Acrylester-Styrol-Acrylnitril) and the backplate is aluminum.
