| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Charge Generation (Quartz) | |
| Charge Generation (Teflon) | |
| Closure System | |
| Color | |
| Conflict Minerals | |
| Discharge Shielding | |
| Heat Seal Strength | |
| Heat Sealing Pressure | |
| Heat Sealing Temperature Range | |
| Heat Sealing Time | |
| Length | |
| MVTR | |
| Marking Adhesion | |
| Metal Layer | |
| Non-corrosive | |
| Packaging Type | |
| Puncture Strength | |
| SVHC Present | |
| Seal Strength | |
| Silicone | |
| Standard Package Qty | |
| Static Shielding | |
| Surface Resistance | |
| Tensile Strength | |
| Thickness | |
| Type | |
| Width |

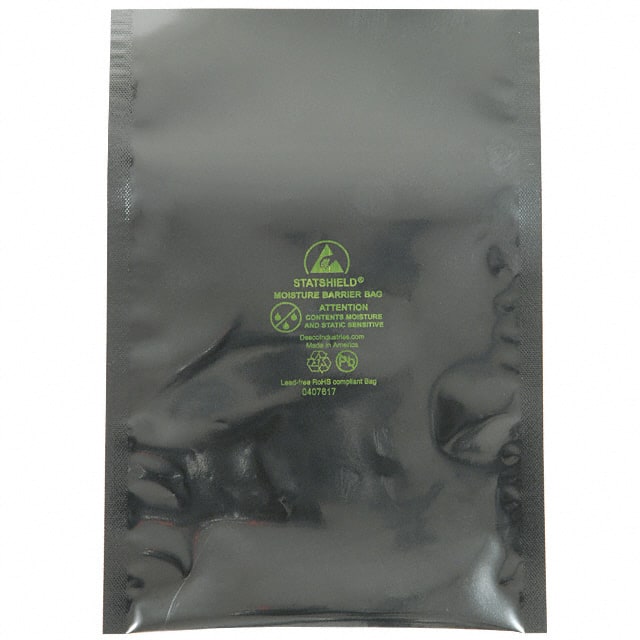

The Desco Statshield Standard Moisture Barrier Bag (part number 13812) is designed for the static-safe storage and shipping of moisture-sensitive electronic components.
This 3.5 mil thick bag measures 8 inches wide by 10 inches long (inside dimensions) and features an aluminum shielding layer for superior electrostatic discharge protection. It provides surface resistance of 1 x 10⁴ to < 1 x 10¹¹ ohms, discharge shielding of less than 10 nJ, and static shielding of 20 volts. The bag has a moisture vapor transmission rate (MVTR) of ≤0.02 g/100 sq. in./24 hours.
Mechanical properties include tensile strength of 9000 psi, puncture strength greater than 20 lbs, and heat seal strength exceeding 11 lb/in width. The closure system is user-defined (clips, heat seal, or tape). Heat sealing parameters are 300°F – 400°F temperature, 0.6 – 4.5 seconds time, and 30 – 70 PSI pressure.
The bag is silver in color, silicone-free and non-corrosive. It is packaged in bulk with a standard quantity of 100 per oversized shielding bag. The product complies with RoHS3, REACH, and Conflict Minerals requirements.
The inside dimensions are 8 inches (203.2 mm) wide by 10 inches (254 mm) long.
Yes, the bag is RoHS3 compliant.
The moisture vapor transmission rate (MVTR) is ≤0.02 g/100 sq. in./24 hours.
Discharge shielding is less than 10 nJ, and static shielding is 20 volts.
The nominal thickness is 3.5 mil (0.09 mm).
