| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,200 pcs
|
9200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

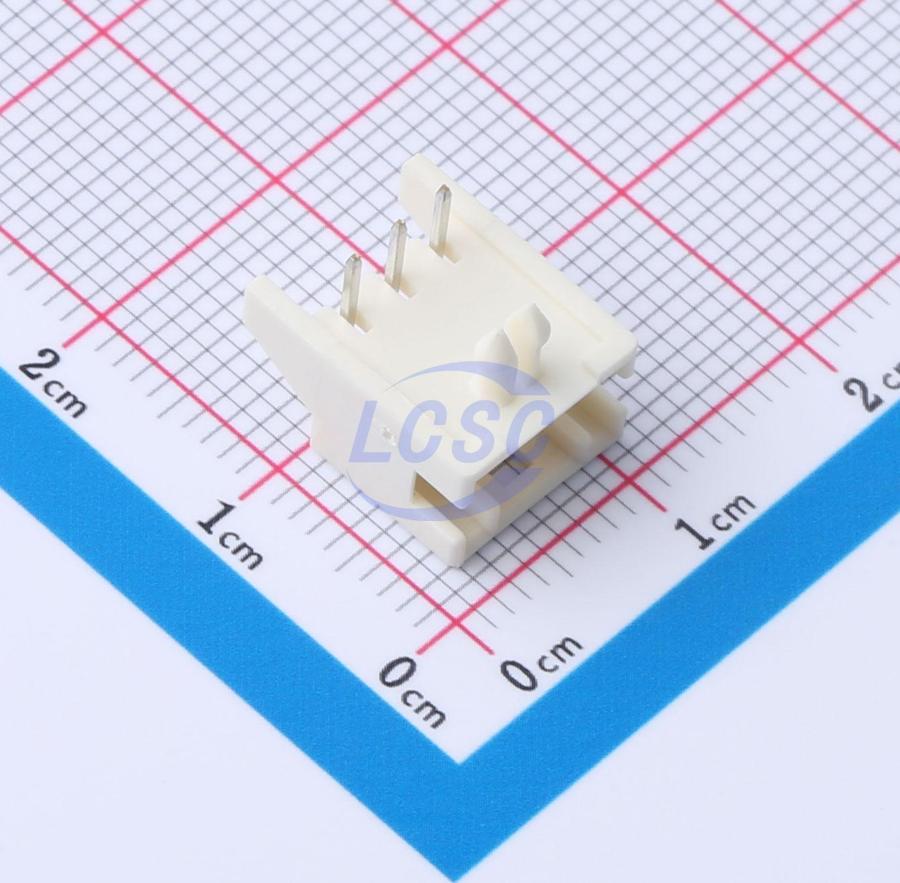

The TE Connectivity 1376473-3 is a 3-position, single-row header designed for board-to-cable/wire applications. It features male square pins with a tin contact finish and a 2.5mm pitch. The connector is shrouded with a 4-wall design and includes a latch holder for secure mating.
This header is rated for 50V and has an operating temperature range of -30°C to 105°C. The insulation is made of glass-filled polyamide (PA66/Nylon 6/6) with a natural color and a UL94 V-0 flammability rating. It includes a board lock feature for secure attachment to the PCB.
The component is mounted using through hole, right angle termination with solder. The insulation height is 6.70mm and the contact length is 3.20mm. The current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 150+ | $0.55 | $0.55 |
| 750+ | $0.54 | $0.54 |
| 1,350+ | $0.52 | $0.52 |
| 128,000+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1376473-3 has 3 positions in a single row.
The pitch is 2.50mm.
The voltage rating is 50V.
The mounting type is Through Hole, Right Angle.
The operating temperature range is -30°C to 105°C.
The insulation is made of Polyamide (PA66), Nylon 6/6, Glass Filled with a UL94 V-0 flammability rating.
