| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
255 pcs
|
255 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

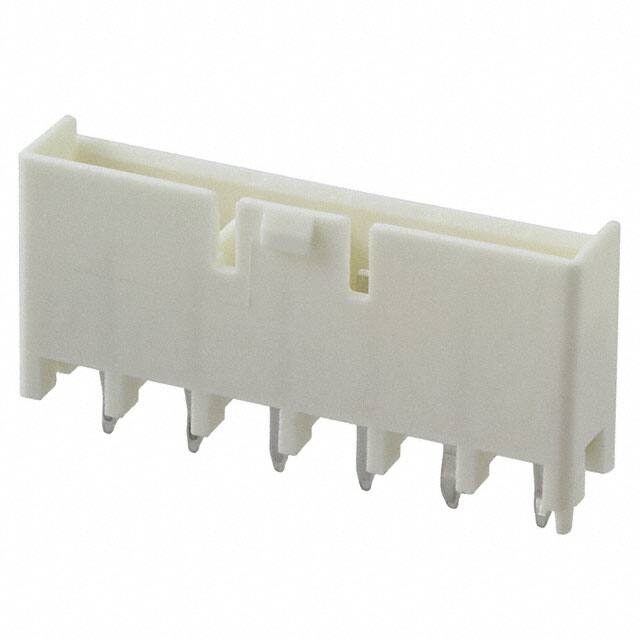

The TE Connectivity 1376385-1 is a header connector from the Power Key connector family, designed for wire-to-board applications. It has 6 positions in a single row with a 5.00mm pitch, featuring a shrouded 4-wall housing for protection and a locking ramp for secure mating. The header is through-hole mounted with kinked pin solder termination. The insulation is made of glass-filled nylon 6/6 (PA66) in natural color, with a flammability rating of UL94 V-0. Contact material is copper alloy with tin finish. The connector is rated for 300VAC and the current rating depends on the wire gauge used, with the series supporting up to 10A max. Operating temperature range is -40°C to 105°C. Applications include household appliances, gas appliances, power cord connections, and control boards. The header includes a board guide feature for alignment.
6 positions.
5.00mm.
Varies by wire gauge; the Power Key series supports up to 10A max.
300VAC.
Through hole.
-40°C to 105°C.
UL94 V-0.
