| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,580 pcs
|
4580 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Weight |

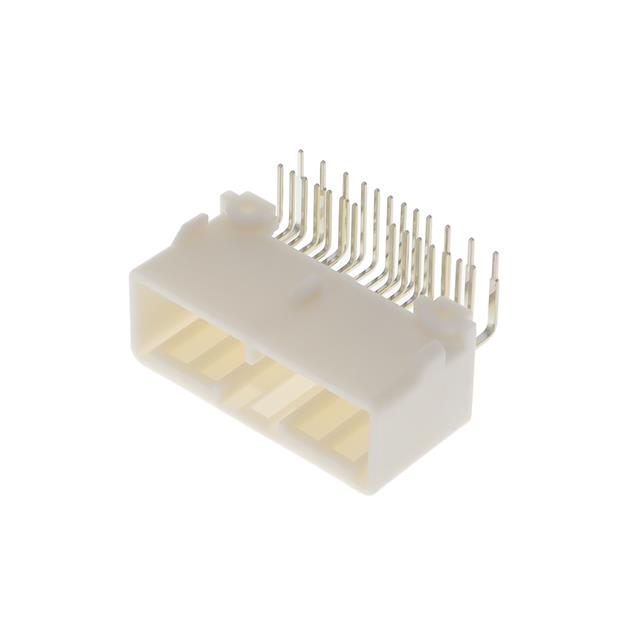

The TE Connectivity 1376357-8 is a 26-position, 2-row, right-angle header designed for board-to-cable/wire connections. It features a shrouded 4-wall housing with a latch holder for secure mating, and a mounting flange for additional mechanical stability. The header uses square brass male pins with a tin contact finish, and the insulator is made of glass-filled PBT in a natural color.
This header is rated for 12VDC operation and has an operating temperature range of -30°C to 105°C. The insulation height is 17.60mm, and the contact length is 4.00mm. The component is through-hole mounted with solder termination, making it suitable for standard PCB assembly processes.
The 025/090 series connector is designed for reliable wire-to-board connections in various electronic applications. The right-angle orientation allows for low-profile connections parallel to the PCB, which can be beneficial in space-constrained designs. The shrouded design helps protect the contacts and provides polarization to prevent mis-mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.65 | $4.65 |
| 10+ | $3.96 | $3.96 |
| 100+ | $3.36 | $3.36 |
| 500+ | $3.00 | $3.00 |
| 1,000+ | $2.86 | $2.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 26 positions, all loaded, arranged in 2 rows.
The voltage rating is 12VDC.
The mounting type is through-hole, right angle.
The operating temperature range is -30°C to 105°C.
The contact finish is tin.
The insulation material is polybutylene terephthalate (PBT), glass filled.
