| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,852 pcs
|
1852 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

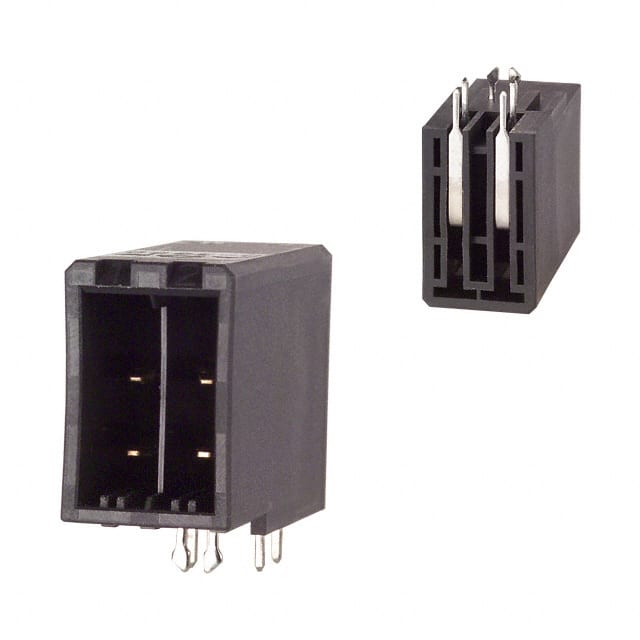

The TE Connectivity 1376133-2 is a 4-position, 2-row rectangular header designed for board-to-board or cable applications. It features a 5.08mm pitch and row spacing, with a shrouded 4-wall design and detent lock fastening for secure mating.
This header uses copper alloy contacts with a tin finish (15.0µin thickness) and a rectangular contact shape. The insulation is black thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating. It includes a board lock feature for additional mechanical retention.
Rated for 600V and an operating temperature range of -55°C to 105°C, this component is suitable for industrial and commercial electronic assemblies requiring a reliable right-angle interconnect.
The pitch is 5.08mm (0.200").
It has 4 positions arranged in 2 rows.
The voltage rating is 600V.
Through hole, right angle mounting with solder termination.
-55°C to 105°C.
RoHS3 Compliant (unverified).
