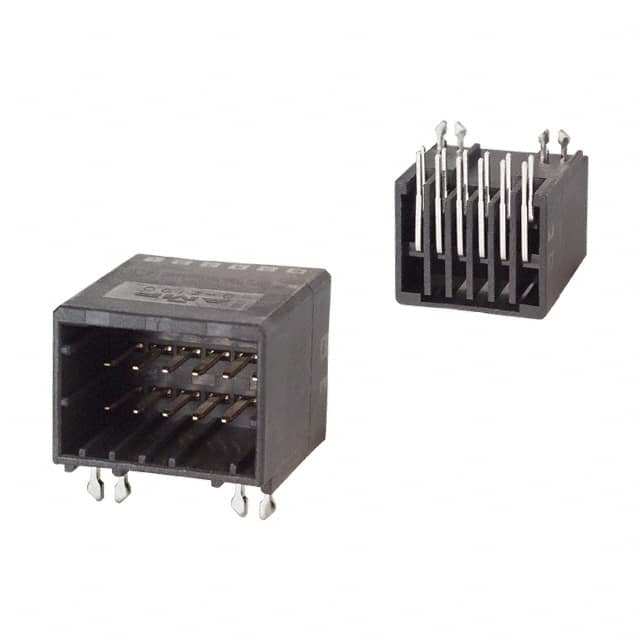

TE Connectivity 1376020-2 is a 12-position, 2-row, 2.5mm pitch shrouded header with through hole right angle mounting and solder termination.

✓ Total Stock: 618 pcs

$ Price Range: $3.62 - $5.89

1376020-2 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	550 pcs On Request	550 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Husky International Electronic ✓ Non-Authorised Inventory information	68 pcs On Request	68 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

1376020-2 Description

Short technical summary and product information.

The TE Connectivity 1376020-2 is a 12-position rectangular header designed for board-to-board or cable applications. It features a 2.5mm pitch, 2 rows, and a shrouded 4-wall design with a detent lock fastening type for secure mating. The header uses rectangular tab contacts made of copper alloy with a tin finish (15.0µin thickness) and is rated for 5A current and 250VAC voltage.

The connector is through hole mounted with a right angle orientation, making it suitable for space-constrained PCB layouts. The insulation is black thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating. It includes a board lock feature for additional mechanical retention. The operating temperature range is -55°C to 105°C.

1376020-2 Quick Information

Product Type: Header, Male Pins

Canonical Name: TE Connectivity 1376020-2 Header, Male Pins, 12 Position, 2.5mm Pitch, Through Hole Right Angle

Subcategory: Shrouded Header

1376020-2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1376020-2 Estimated Pricing

Qty	Low	High
1+	$5.89	$5.89
26+	$4.68	$4.68
104+	$4.25	$4.25
520+	$3.79	$3.79
1,014+	$3.62	$3.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

1376020-2 Features

12 positions in 2 rows at 2.5mm pitch.
Through hole right angle mounting with solder termination.
Shrouded 4-wall design with detent lock fastening.
Rated for 5A current and 250VAC voltage.
Operating temperature range -55°C to 105°C.

1376020-2 Applications

Board-to-board connections in electronic assemblies.
Cable-to-board interfaces requiring secure locking.
Space-constrained PCB layouts needing right angle headers.
Industrial and commercial equipment up to 105°C ambient.

1376020-2 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 1376020-2 have?

12 positions, arranged in 2 rows.

What is the pitch of this header?

2.50mm (0.098 inches).

What is the current rating of the 1376020-2?

5A.

What is the voltage rating?

250VAC.

What mounting type does this connector use?

Through hole, right angle.

Is the 1376020-2 RoHS compliant?

RoHS3 Compliant (unverified).

What is the operating temperature range?

-55°C to 105°C.

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
AEC Qualified	No
Automotive Grade	No
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	15.0µin (0.38µm)
Contact Length	3.40mm (0.134")
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	5A
Fastening Type	Detent Lock
Features	Board Lock
Industrial Grade	No
Insulation Color	Black
Insulation Height	14.70mm (0.579")
Insulation Material	Thermoplastic, Polyester, Glass Filled
Lead Spacing	2.50mm
Lead Style	Right Angle
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.50mm (0.098")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	250VAC
