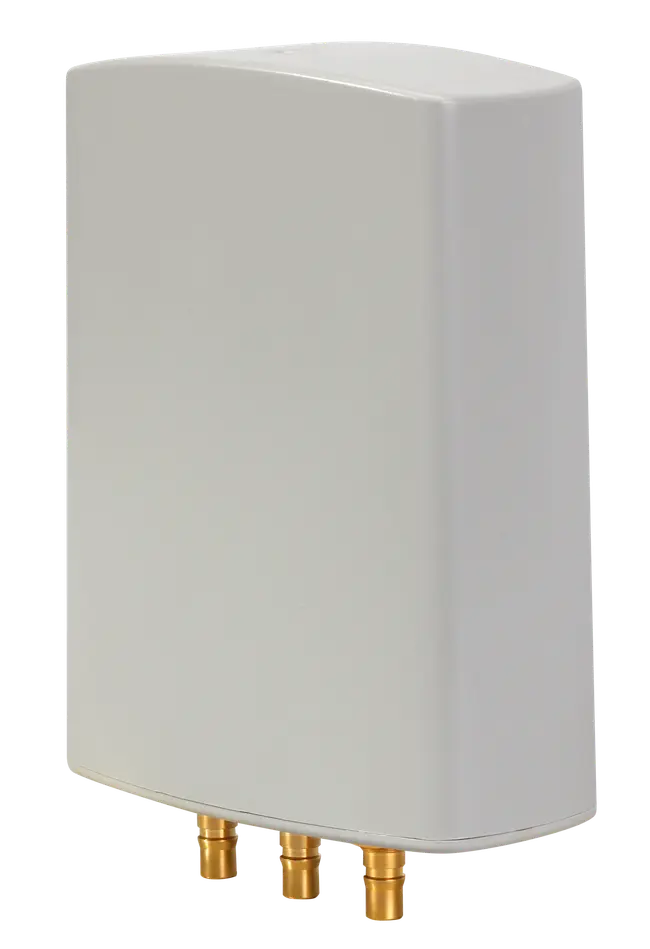

The HUBER+SUHNER SENCITY® Spot-S 3x3 Wi-Fi MIMO Antenna (part number 1356.35.0003) is an industrial-grade antenna designed for Wi-Fi applications in the 5150 to 5935 MHz frequency bands. It supports WLAN standards IEEE 802.11 a/h/n/p/ac and features a 3x3 MIMO configuration with three QMA antenna ports.
This antenna offers a typical gain of 8 dBi with dual slant +/-45° polarization and vertical polarization. Its rugged design meets railway standards EN 50155 and EN 50125-3, making it suitable for demanding environments. The antenna is rated IP66 and IP67 for ingress protection, allowing for both indoor and outdoor mounting.
Key mechanical specifications include a weight of 0.27 kg and dimensions of 101 mm x 81 mm x 36 mm. The radome is constructed from PC (Polycarbonate) in RAL 7044 grey. Operating, storage, and transport temperatures range from -40 °C to 85 °C. It is designed for wall mounting, with material included.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the 1356.35.0003 is -40 °C to 85 °C.
The 1356.35.0003 antenna operates in the 5150-5935 MHz frequency band.
The typical gain of the 1356.35.0003 antenna is 8 dBi.
The 1356.35.0003 has an ingress protection rating of IP66/IP67.
The dimensions of the 1356.35.0003 are 101 mm x 81 mm x 36 mm.
The weight of the 1356.35.0003 is 0.27 kg.
The 1356.35.0003 supports WLAN IEEE 802.11 a/h/n/p/ac standards.
