| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Closure System | |
| Color | |
| Conflict Minerals | |
| Length | |
| Metal Layer | |
| SVHC Present | |
| Static Discharge Shielding | |
| Tensile Strength | |
| Thickness | |
| Type | |
| Width |

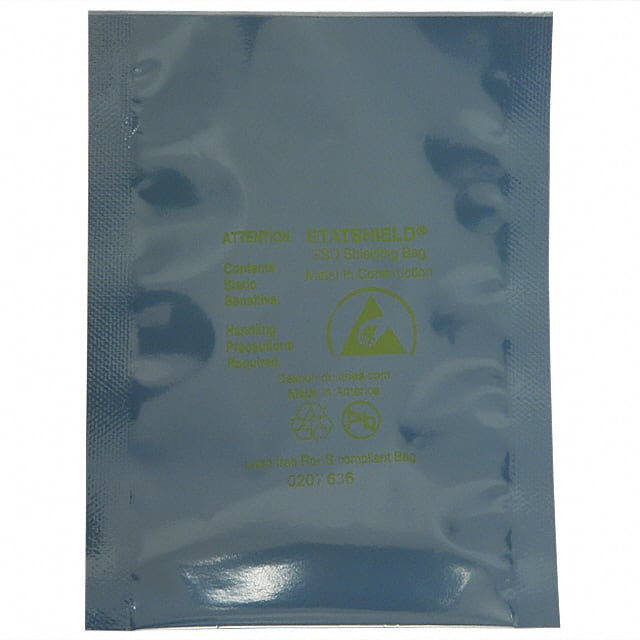

The Desco STATSHIELD® Metal-In static shielding bag (part number 13490) is a 3.0 mil (76.2 micron) flexible bag designed for protecting sensitive electronic components from electrostatic discharge. It features a proprietary low-charging static dissipative outer polyester layer, an aluminum shielding layer, and a low-charging static dissipative inner polyethylene layer.
Electrical performance includes surface resistance of 1 x 10^4 to < 1 x 10^11 ohms on both inner and outer surfaces per ANSI/ESD STM11.11, discharge shielding of <20 nJ per ANSI/ESD STM11.31 and EIA 541, and a capacitance probe reading of <30 volts for a 1 kV discharge per ANSI/EIA-541 Appendix E. Charge generation is 0.09 nC/sq.in. (Teflon) and 0.01 nC/sq.in. (Quartz) per Modified Incline Plane method.
Mechanical properties include tensile strength of 4600 PSI (32 MPa) per ASTM D882, puncture resistance >10 lbs per MIL-STD-3010, heat seal strength >10 lbs/in at 375°F, and light transmission >40% per ASTM D-1003. The bag is non-corrosive per MIL-STD-3010 and silicone-free per FTIR analysis. It is packaged 100 per package in an oversized shielding bag.
The nominal thickness is 3.0 mil (76.2 microns).
The bag is 10 inches (254 mm) wide by 30 inches (762 mm) long.
Discharge shielding is <20 nJ per ANSI/ESD STM11.31 and EIA 541.
Yes, it is RoHS3 compliant.
Both inner and outer surfaces have a surface resistance of 1 x 10^4 to < 1 x 10^11 ohms per ANSI/ESD STM11.11.
100 bags per package.
