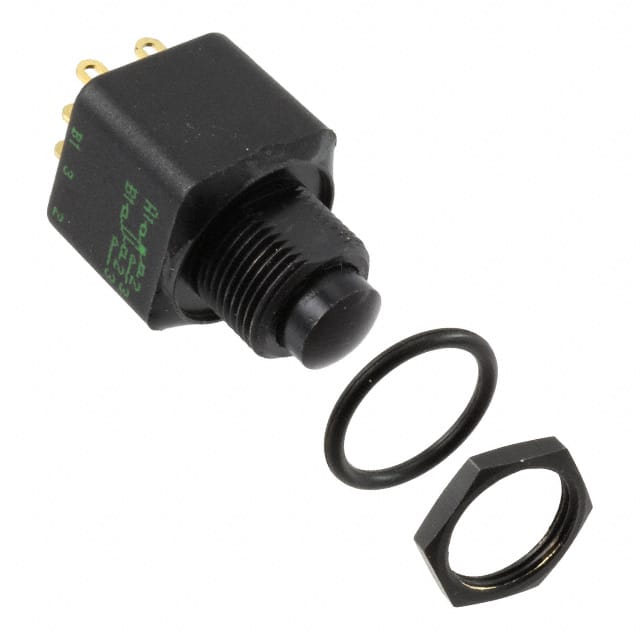

134454X778 The APEM Inc. 134454X778 is a DPDT pushbutton switch rated for 4A at 28V. It features a panel mount design with solder lug termination.
Mfr Part #:

134454X778

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. 134454X778 is a DPDT pushbutton switch rated for 4A at 28V. It features a panel mount design with solder lug termination.
✓ Total Stock: 20 pcs
$ Price Range: $0.75

134454X778 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

134454X778 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Ingress Protection
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

134454X778 Description

Short technical summary and product information.

This APEM Inc. 134454X778 pushbutton switch is designed for robust applications, offering a DPDT circuit configuration. It is rated to handle 4A of current at 28V, making it suitable for various electrical systems.



The switch features a panel mount design with rear mounting capability and a solder lug termination style for secure connections. Its operating temperature range is -40°C to 85°C, and it boasts an IP67 rating, providing excellent protection against dust and water ingress.



Key specifications include a standard actuator type and a panel cutout diameter of 12.00mm. The switch function is On-Mom, indicating it remains active while the button is pressed.

134454X778 Quick Information

Product Type: Pushbutton Switch
Canonical Name: APEM Inc. 134454X778 Pushbutton Switch
Subcategory: Pushbutton

134454X778 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

134454X778 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

134454X778 Features

  • DPDT pushbutton switch rated for 4A 28V.
  • IP67 rated for dust tight and waterproof.
  • Panel mount with solder lug termination.
  • Operates from -40°C to 85°C.
  • Momentary (On-Mom) switch function.

134454X778 Applications

  • Suitable for industrial control panels.
  • Used in harsh environmental conditions.
  • Ideal for momentary switching needs.
  • Requires 12mm panel cutout.

134454X778 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this switch?

-40°C to 85°C

What is the current and voltage rating?

4A (DC) at 28V

What type of circuit does this pushbutton switch have?

DPDT

What is the ingress protection rating?

IP67 - Dust Tight, Waterproof

How is this switch mounted and terminated?

Panel Mount, Rear mounting with Solder Lug termination.
