| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
270 pcs
|
270 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Width |

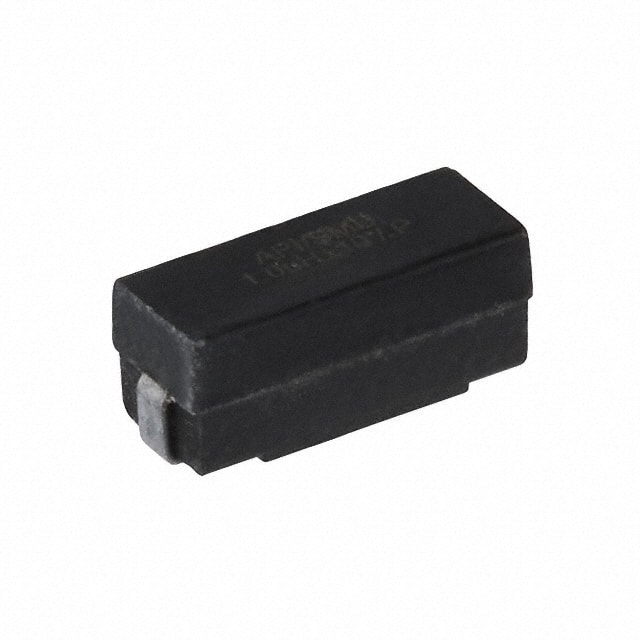

The 1330-28K is a fixed inductor manufactured by API Delevan Inc. It provides an inductance of 2.2 µH with a tolerance of ±10%. The component is rated for a maximum current of 415 mA and has a maximum DC resistance of 400 mOhm.
This unshielded inductor uses an iron core and offers a Q factor of 30 at 7.9 MHz, with a self-resonant frequency of 115 MHz. It is designed for surface mount assembly in a nonstandard package measuring 7.94 mm x 2.92 mm x 3.68 mm. The operating temperature range spans -55°C to 105°C.
Typical applications include RF circuits, filtering, and impedance matching where moderate inductance and low DCR are required. The part is RoHS compliant (unverified) and has a Moisture Sensitivity Level of 1 (unlimited).
The inductance is 2.2 µH with a tolerance of ±10%.
The maximum current rating is 415 mA.
The maximum DC resistance is 400 mOhm.
The self-resonant frequency is 115 MHz.
The package is Nonstandard surface mount.
The operating temperature range is -55°C to 105°C.
No, it is unshielded.
