| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,505 pcs
|
2505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

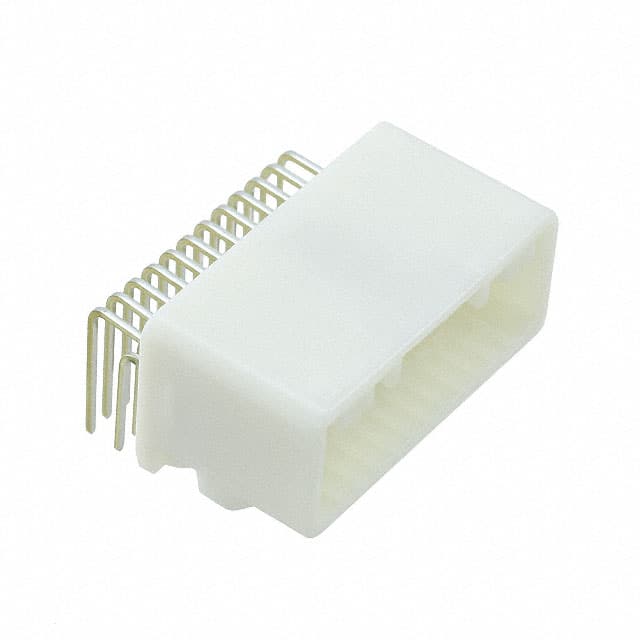

The TE Connectivity 1318853-2 is a 24-position, 2-row, 2.20mm pitch board-to-cable/wire header with male pin contacts. It uses a right-angle through-hole mounting style with solder termination, making it suitable for applications requiring a low-profile connection. The connector features a full 4-wall shroud for pin protection and a latch holder fastening system for secure mating with compatible cable connectors.
The header uses square brass pins with a tin contact finish and has a 0.118" (3.00 mm) row spacing. The insulation material is glass-filled PBT with a natural color, rated UL94 HB for flammability. Operating temperature range is -30°C to 105°C. The part includes a mounting flange for additional mechanical stability.
The pitch is 2.20 mm (0.087 inches).
It has 24 positions, all loaded, in 2 rows.
It is through hole, right angle mounting with solder termination.
The voltage rating is 12 VDC.
The operating temperature range is -30°C to 105°C.
Yes, it is a shrouded header with a 4-wall design.
It uses a latch holder fastening type.
