| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

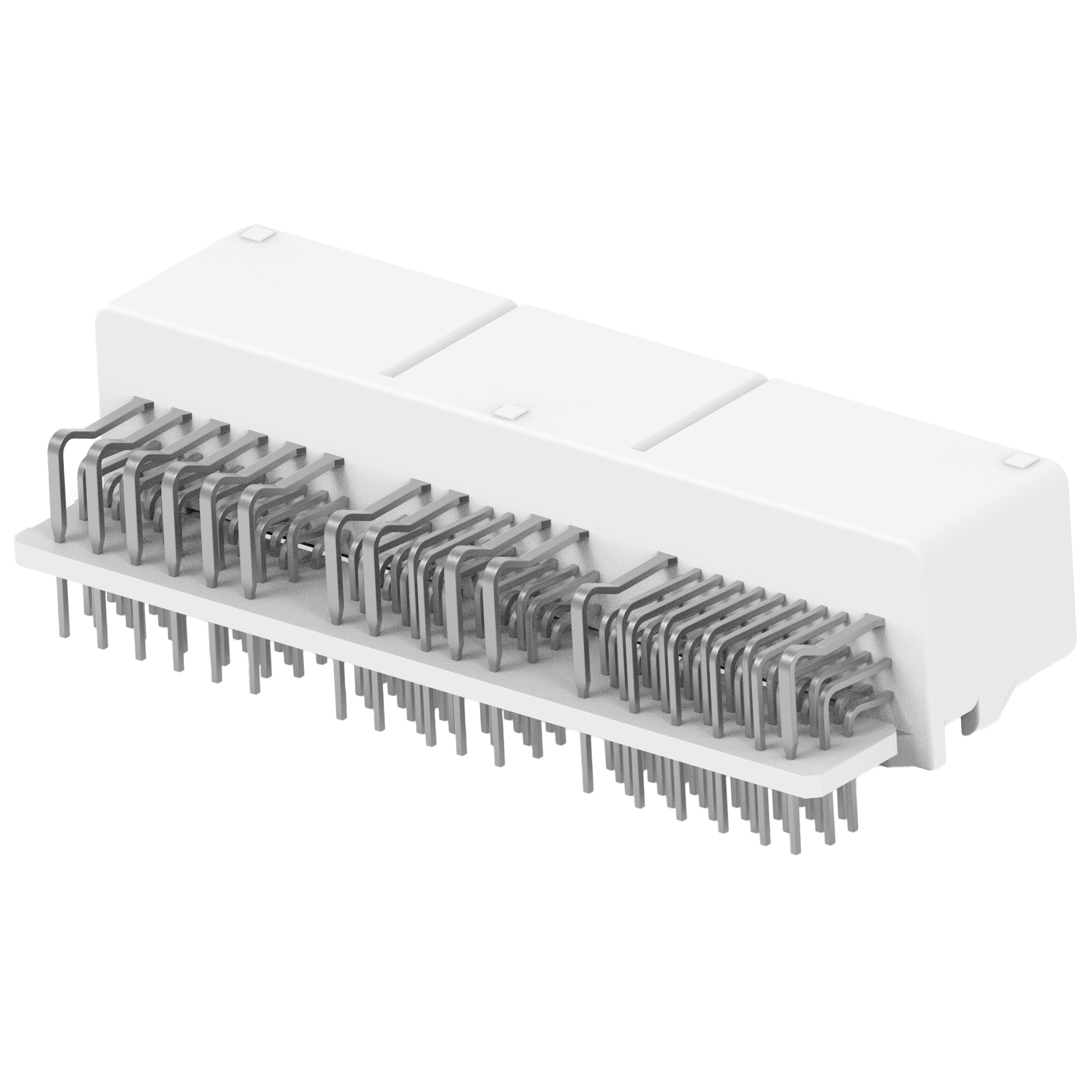

This is a 80-position header connector from TE Connectivity. It features a 2.2mm pitch and 3 rows with all positions loaded. The connector is right angle through hole mount and fully shrouded with a 4-wall design, providing protection for the male pins. It includes a latch holder for secure mating and a mounting flange for additional stability. The insulation is natural PBT glass filled with UL94 HB flammability rating. The contacts are brass with tin finish, and the contact length is 4.00mm. Operating temperature range is -30°C to 105°C, and voltage rating is 12VDC. This connector is suitable for board-to-cable/wire applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.21 | $11.21 |
| 12+ | $9.40 | $9.40 |
| 102+ | $8.08 | $8.08 |
| 504+ | $7.22 | $7.22 |
| 1,002+ | $6.88 | $6.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
2.2mm.
12VDC.
Through hole, right angle.
-30°C to 105°C.
3 rows.
Tin.
