| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,153 pcs
|
1153 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

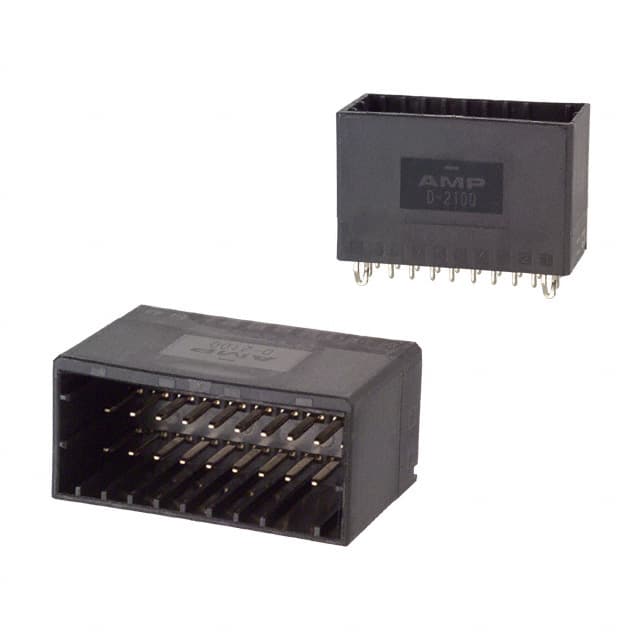

The TE Connectivity 1318127-2 is a 20-position, 2-row shrouded header designed for board-to-board or cable-to-board connections. It features a 2.50mm pitch and 3.75mm row spacing, with rectangular tab contacts made of copper alloy and finished in tin (0.38µm thickness). The connector is fully shrouded with a 4-wall design and includes a detent lock for secure mating.
The header is constructed with a black thermoplastic polyester glass-filled insulator rated UL94 V-0, and operates over a temperature range of -55°C to 105°C. The contact length is 3.40mm. The through-hole mounting style with solder termination makes it suitable for standard PCB assembly processes.
With a current rating of 5A and a voltage rating of 250V, this connector is suitable for a variety of power and signal applications. The included board lock feature helps secure the connector to the PCB during assembly and use.
The pitch is 2.50mm with a row spacing of 3.75mm.
It has 20 positions arranged in 2 rows with all positions loaded.
The current rating is 5A and the voltage rating is 250V.
It is a through-hole mount connector with solder termination.
