| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
181 pcs
|
181 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

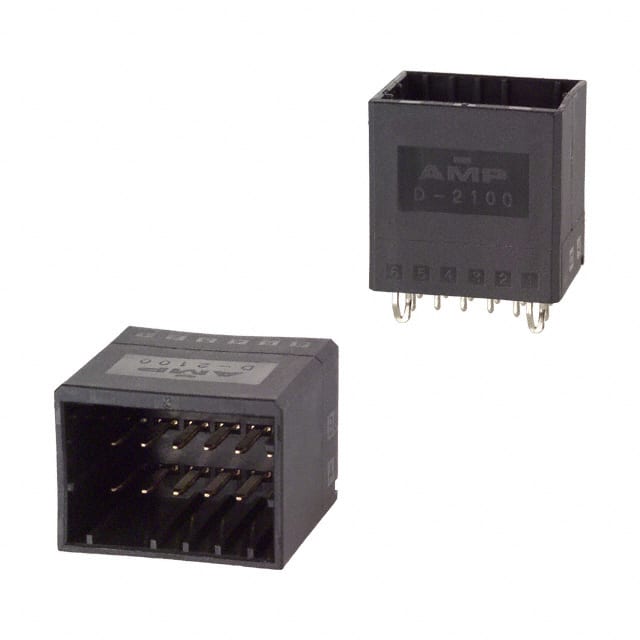

The TE Connectivity 1318126-2 is a 12-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.5mm pitch and through hole solder termination, with a detent lock for secure mating. The header is fully shrouded with 4 walls, providing robust protection for the rectangular tab contacts.
Rated at 5A and 250V, this connector is suitable for a variety of power and signal interconnect needs. The contacts are made of copper alloy with a 15µin tin finish, ensuring reliable conductivity and corrosion resistance. The black thermoplastic polyester glass-filled insulator offers a UL94 V-0 flammability rating and operates from -55°C to 105°C.
Mechanical features include a board lock for secure attachment, a mating contact length of 3.40mm, and an insulation height of 17.78mm. The through hole mounting with solder termination provides a robust connection for PCB assembly.
The pitch is 2.50mm (0.098 inches).
It has 12 positions arranged in 2 rows.
The current rating is 5A and the voltage rating is 250V.
It is a through hole mount with solder termination.
The operating temperature range is -55°C to 105°C.
