| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,132 pcs
|
2132 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

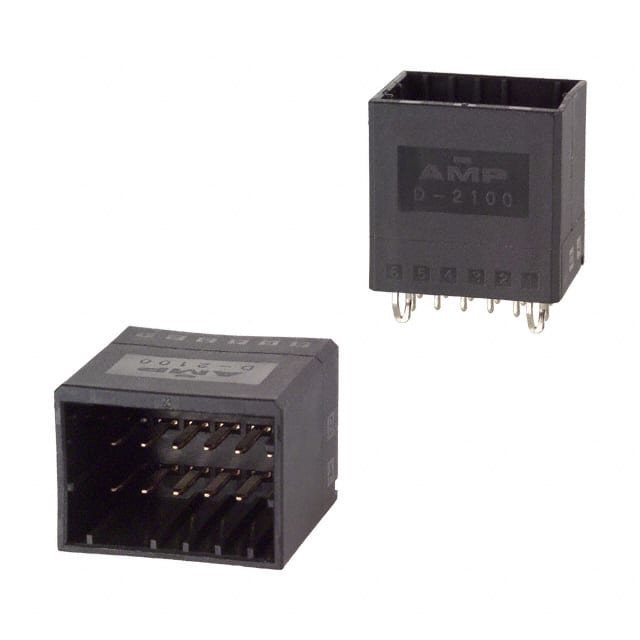

The TE Connectivity 1318126-1 is a 12-position, 2-row header designed for board-to-board or cable applications. It features a 2.50mm pitch and 3.75mm row spacing, with a through-hole mounting style and solder termination.
The connector is shrouded on all four walls and includes a detent lock for secure mating. It is rated for 5A current and 250V voltage, with an operating temperature range of -55°C to 105°C. The contacts are made of copper alloy with a tin finish, and the black insulation is thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating.
This header is suitable for a variety of applications requiring a reliable, polarized connection. The board lock feature provides additional retention during soldering.
The 1318126-1 has 12 positions in 2 rows.
The pitch is 2.50mm (0.098 inches).
The current rating is 5A.
The voltage rating is 250V.
The mounting type is through hole.
The operating temperature range is -55°C to 105°C.
RoHS3 compliance is indicated but unverified.
