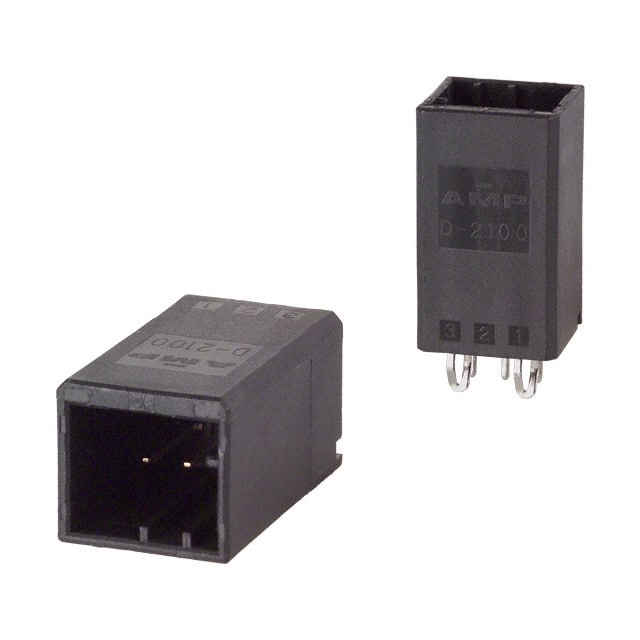

1318123-1 TE Connectivity 1318123-1 is a 3-position, single-row, through-hole header connector with a 2.5mm pitch. It features a shrouded 4-wall design with detent lock and tin-plated copper alloy contacts.
Mfr Part #:

1318123-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1318123-1 is a 3-position, single-row, through-hole header connector with a 2.5mm pitch. It features a shrouded 4-wall design with detent lock and tin-plated copper alloy contacts.
✓ Total Stock: 4,380 pcs

1318123-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
4,370 pcs
On Request
4370 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1318123-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

1318123-1 Description

Short technical summary and product information.

TE Connectivity 1318123-1 is a rectangular connector header with male pins. It has 3 positions in a single row with a 2.5mm pitch. The connector is through-hole mounted with solder termination.



Key specifications include a current rating of 5A and voltage rating of 250VAC. The operating temperature range is -55°C to 105°C. The insulation material is thermoplastic, polyester, glass filled with UL94 V-0 flammability rating. Contacts are copper alloy with tin finish (15µin). The header is shrouded with 4 walls and features a detent lock for secure mating.



This header is suitable for board-to-board or cable applications. It includes a board lock feature for additional retention. The black insulation and rectangular contact shape are standard for many industrial and consumer electronics.



Mounting is through-hole with solder termination.

1318123-1 Quick Information

Product Type: Header Connector
Series: Dynamic Series
Canonical Name: TE Connectivity 1318123-1 Header Connector, 3 Position, 2.5mm Pitch, Through Hole
Subcategory: Male Pins

1318123-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected

1318123-1 Features

  • 3 positions in single row with 2.5mm pitch.
  • Shrouded 4-wall design with detent lock.
  • Rated for 5A current and 250VAC voltage.
  • Through-hole mounting with solder termination.
  • Tin-plated copper alloy contacts.

1318123-1 Applications

  • Used in board-to-board connections.
  • Suitable for cable-to-board interfaces.
  • Ideal for industrial control systems.
  • Common in consumer electronics.

1318123-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1318123-1 have?

3 positions.

What is the pitch of this header?

2.50mm (0.098").

What is the current rating?

5A.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin, 15.0µin (0.38µm).
