| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Insulation | |
| Insulation Diameter | |
| Lead Style | |
| Length | |
| Military Grade | |
| Pin Diameter | |
| Termination | |
| Termination Style | |
| Wire Gauge |

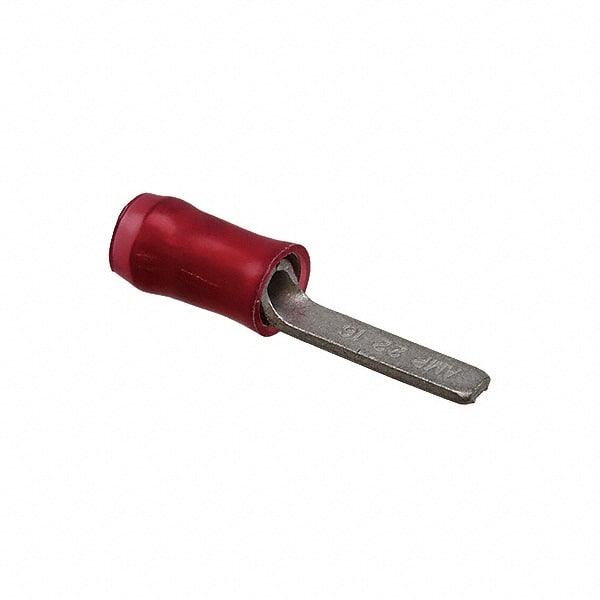

The TE Connectivity 131331 is a PIDG series wire pin terminal designed for 16-22 AWG wire (0.2~1.6mm²). It features a crimp termination style and is fully insulated with a red color code for easy wire gauge identification.
The terminal has a rectangular pin measuring 0.116" W x 0.031" H (2.95mm x 0.80mm) and accepts insulation diameters from 0.106" to 0.142" (2.69mm to 3.61mm). The overall length is 23.01mm (0.906"). A serrated termination design enhances grip and electrical conductivity after crimping.
This component is suitable for wire-to-board or wire-to-wire connections where a reliable, insulated pin terminal is required. The PIDG (Pre-Insulated Diamond Grip) series is known for its durable nylon insulation and consistent crimp performance.
16-22 AWG (0.2~1.6mm²).
Crimp.
Yes, it is insulated and color-coded red.
Rectangular - 0.116" W x 0.031" H (2.95mm x 0.80mm).
23.01mm (0.906").
0.106" ~ 0.142" (2.69mm ~ 3.61mm).
Serrated termination for improved grip.
