| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
117 pcs
|
117 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Industrial Grade | |
| Insulation | |
| Insulation Diameter | |
| Lead Style | |
| Length | |
| Military Grade | |
| Pin Diameter | |
| Termination | |
| Wire Gauge |

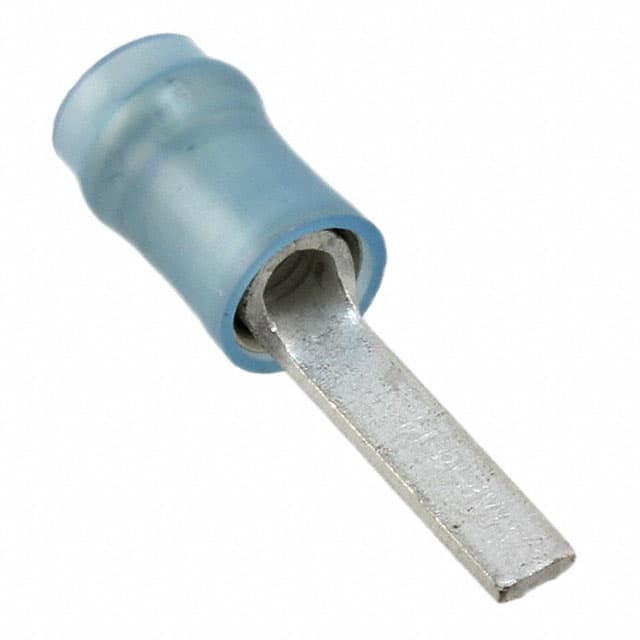

The TE Connectivity 131330 is a PIDG (Pre-Insulated Diamond Grip) wire pin terminal designed for reliable wire termination. It features a crimp termination style and accepts 14-16 AWG wire. The terminal has a rectangular pin diameter of 0.115" W x 0.031" H (2.92mm x 0.80mm) and an overall length of 22.63mm (0.891"). The blue insulation accommodates an insulation diameter range of 0.115" to 0.170" (2.92mm to 4.32mm).
This terminal is insulated, providing protection against short circuits and environmental factors. The PIDG series is known for its high reliability in demanding applications. Typical applications include wire-to-board and wire-to-wire connections in industrial, automotive, and telecommunications equipment.
The terminal is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). No standard package quantity is specified. The part is available through distributors such as Digi-Key under part numbers 131330-ND and 2266-131330-ND.
The terminal accepts 14-16 AWG wire.
The termination style is crimp.
Yes, it is insulated with blue insulation.
The pin is rectangular with dimensions 0.115" W x 0.031" H (2.92mm x 0.80mm).
The overall length is 22.63mm (0.891").
The terminal is stated as RoHS3 compliant, but this status is unverified.
The insulation diameter range is 0.115" to 0.170" (2.92mm to 4.32mm).
