| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| Body Style | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Packaging Method | |
| Packaging Quantity | |
| Stud | |
| Stud Diameter | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge | |
| Wire Range |

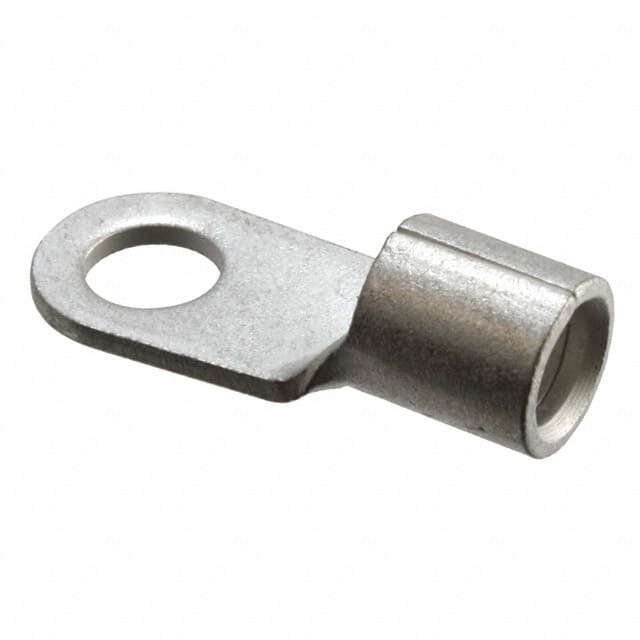

The TE Connectivity 130554 is a SOLISTRAND ring tongue terminal designed for 6 AWG wire. It features a closed barrel, crimp termination, and a brazed seam with serrated barrel for secure wire retention. The terminal is made of tin-plated copper and is non-insulated.
This terminal accepts a stud size of M6 (6.30mm diameter) and is free hanging (in-line) mounted. It has a length of 29.70mm, a width of 11.91mm, and a material thickness of 1.45mm. The wire range is 13.00-15.00 mm².
The SOLISTRAND body style and closed barrel design provide reliable performance in power distribution and grounding applications. The brazed seam and serrated termination ensure a strong mechanical and electrical connection after crimping.
Packaged as loose piece, 100 per box. This terminal is always EU RoHS/ELV compliant.
It accepts 6 AWG wire (13.00-15.00 mm²).
It fits an M6 stud (6.30mm diameter).
Crimp termination.
No, it is non-insulated.
Copper contact with tin finish.
SOLISTRAND body style.
Loose piece, 100 per box.
