| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

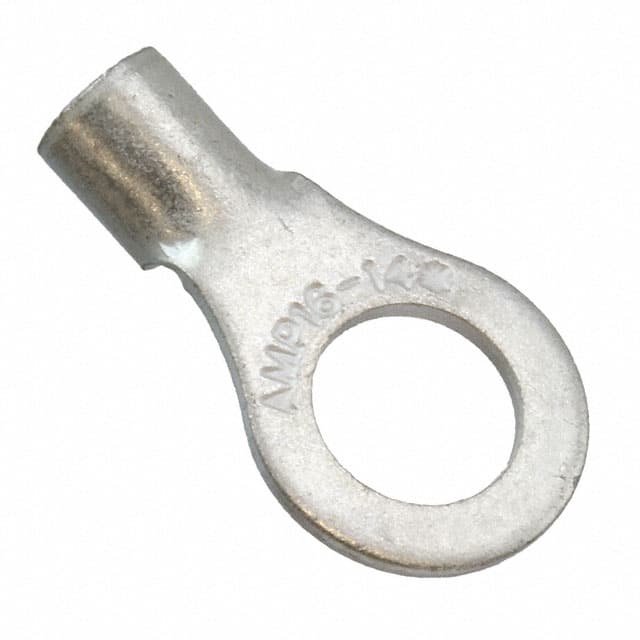

The TE Connectivity 130106 is a non-insulated circular ring connector designed for 14-16 AWG wire. It features a M5 stud size and crimp termination, making it suitable for secure wire-to-stud connections. The contact is made of copper with a tin finish, providing good conductivity and corrosion resistance. The terminal includes a brazed seam and serrated termination to ensure a reliable mechanical and electrical connection. With dimensions of 0.79mm thickness, 8.74mm width, and 16.31mm length, it is a compact free-hanging (in-line) connector. This terminal is ideal for use in power distribution, grounding, and general wire termination applications.
14-16 AWG.
M5 stud.
No, it is non-insulated.
Crimp termination.
Copper with tin finish.
Brazed seam and serrated termination.
Thickness 0.79mm, width 8.74mm, length 16.31mm.
